The fastest and most cost effective way to wire your race car or engine conversion! Simply connect a handful of labelled wires and this plug and Play product allows you to be up and running in just a few hours.
efficient Haltech Plug’n’Play product that allows you to be up and running in just a few hours.
quick start guide will walk you through installation of the Haltech Plug’n’Play harness into your vehicle.
guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.
harness when installed in conjunction with a Haltech Elite ECU opens the door to virtually limitless performance modification and tuning of your vehicle.
programmable systems allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions.
Only logged in customers who have purchased this product may leave a review.
Outputs: Up to 16 injectors, 8 ignition and auxillary I/O.
Suits: V8 GM Small/Big Block V8 Ford Small/Big Block Chrysler HEMI

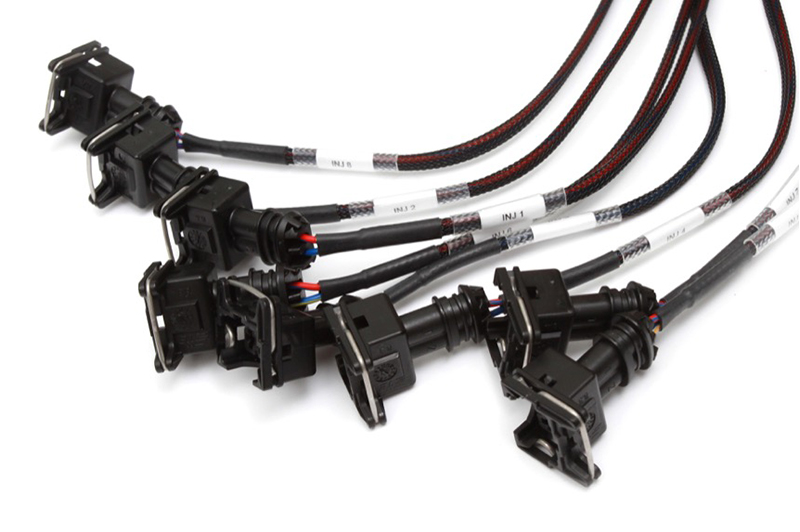

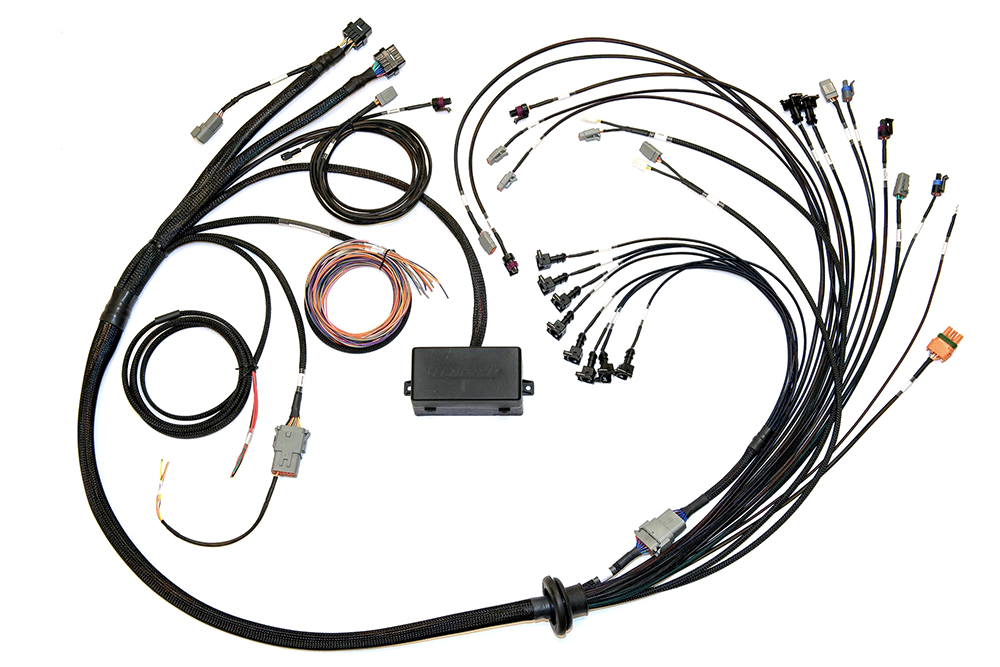

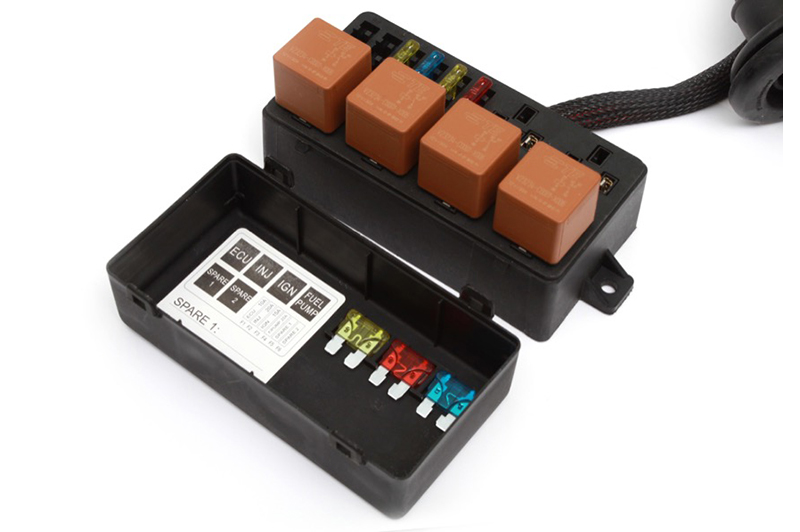

Includes: Elite 2500 & Race Expansion Module (REM) integrated 16 sequential injector terminated engine harness with with 160A SSR, fuse block, firewall grommet and distributor/MSD ready ignition harness, USB programming cable and USB Software Key.
Notes: Used for a new fully integrated installation. DBW function not available when used in combination with a REM. 8 individual ignition coil ready when used with optional HT-130306, HT-130311, HT-130312 or HT-130313.
Suits: Factory EV1 injector connectors and common US style Delco/Bosch GM alternator connector. Pre-wired to connect directly to OEM 7 Pin Coil Harness Connector. WBC1/2 CAN O2 Wideband Controller ready (Controller and sensor(s) not included)
Includes: Engine harness with fuse block and firewall grommet.
Notes: Please confirm your alternator connector (See the product quick start guide) and order an alternator adaptor if required. (HT-040090 or HT-040090) Ignition coils and harnesses are NOT included, Please order 8 x HT-020102 and/or HT-045657 if required.
Suits: A direct Plug ‘n’ Play solution to add 8 individual high output IGN-1A inductive coils with Ford Small/Big Blockfiring order to an E2000/2500 Haltech V8 Terminated Harness, Elite + REM 16 Injector Terminated Harness or Elite + REM Fully Integrated Flying Lead Harness
Includes: Terminated “Tefzel” Milspec coil harness with high current 75A TE power relay.
Notes: Ignition coils are NOT included. Please order 8 x HT-020114 if required.
