The STM Lightweight Rear Drag Brake Kit for the 1995-1999 2G DSM allows you to ditch the weight of your heavy rotors and clear room to run smaller wheels and slicks. With a total weight of only 8.7 pounds per side with the scalloped rotor, we all know less rotating mass is the best way to free up power! The STM brake kits include Wilwood calipers and your choice of the standard rotor or the lightweight scalloped rotor, custom STM aluminum mounting brackets, black anodized rotor hats, STM brake lines and all mounting hardware.
1995-1999 Eclipse GST/GSX
1995-1998 Talon TSi
(This kit also fits Evo 4-9)
This brake set-up is specifically designed for Drag Racing.
This is not intended for constant, on/off braking as in road-racing or autocross.
Will clear most 15″ wheels.

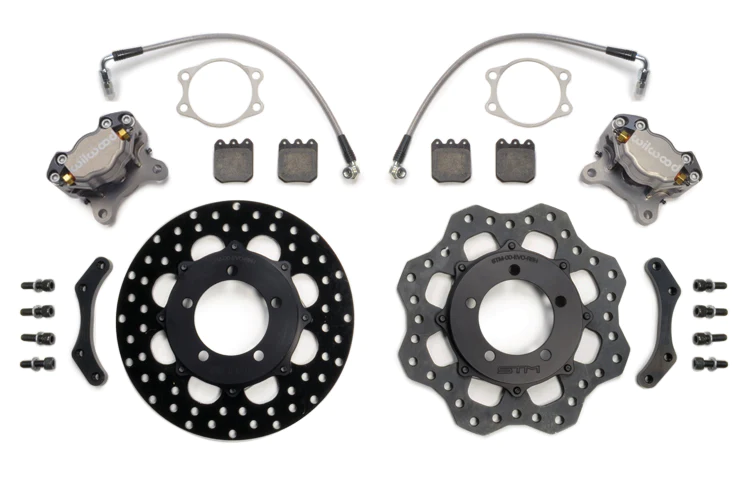

The scalloped rotor is 1.95 pounds lighter than the standard rotor and is recommended for cars that see more miles on the drag strip than on the street. The scalloped rotor is not a street rotor.

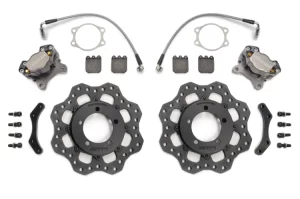

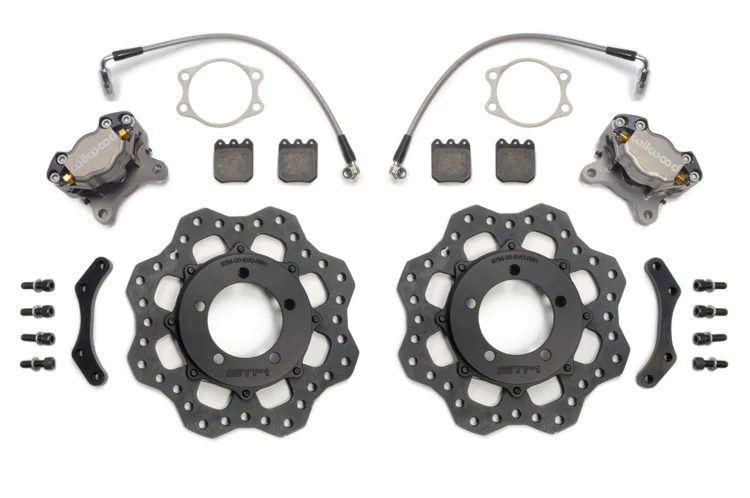

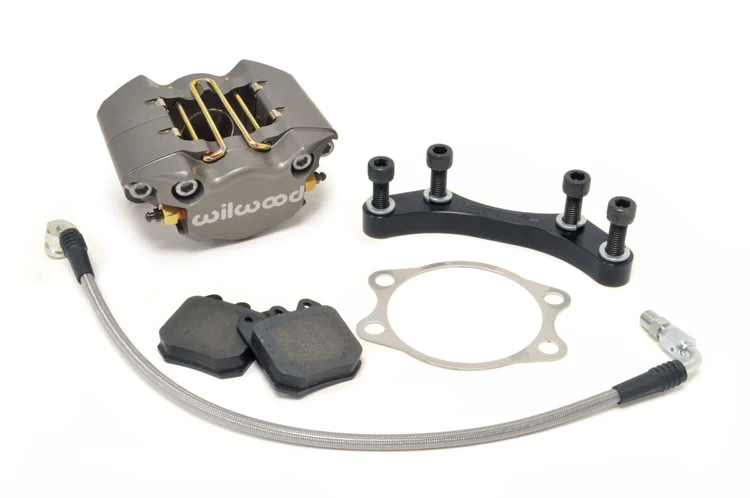

STM Rear Drag Brake Kit Includes:
• Wilwood Dynapro single Calipers
• Wilwood Brake Pads
• Choice of Wilwood Rotor (Standard/Drilled or Scalloped/Drilled)
• Hard Anodized Black Hats
• STM Hub Spacer
• STM Brake Lines
• Hard Anodized Aluminum Brackets
• Mounting Hardware

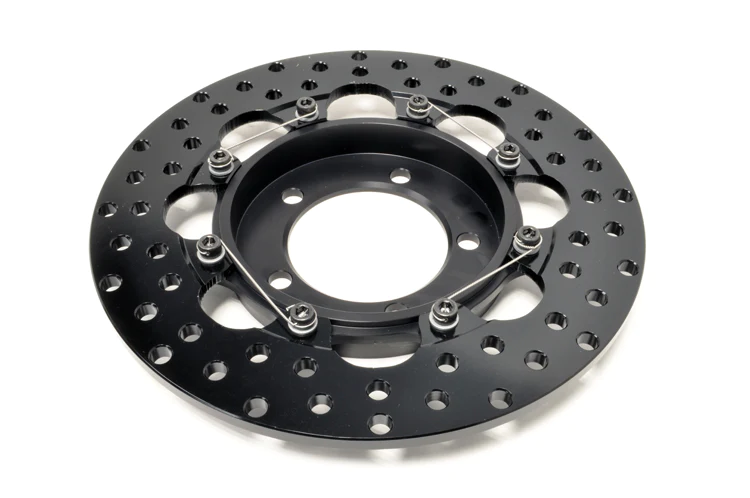

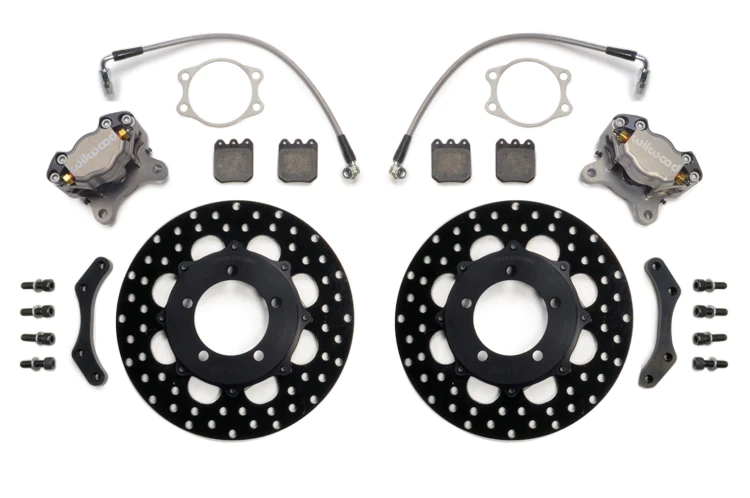

Standard Rotor Brake Kit Specs:
Total weight per side: 10.65 pounds (Rotor, Caliper, Hardware, Line)
Rotor assembly only: 7.25 pounds

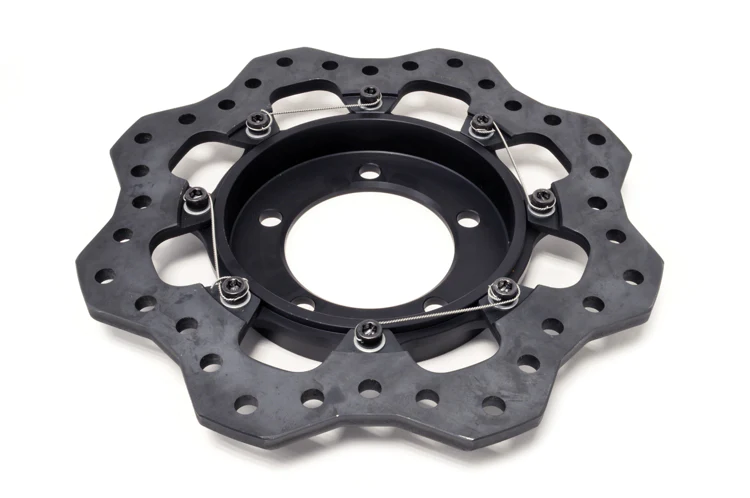

Scalloped Rotor Brake Kit Specs:
Total weight per side: 8.70 pounds (Rotor, Caliper, Hardware, Line)
Rotor assembly only: 5.30 pounds
You will need to remove the E-Brake. STM Staging Brake Kits are available!
** When removing the E-Brake, you must cut and re-use the plate that spaces the wheel bearing out.
IMPORTANT NOTES – For Drag Racing Only!
These brakes are designed for OFF ROAD USE ONLY and drag racing applications. They are NOT intended for consecutive, hard braking. These are not for road racing or autocross or daily street use. While these are also the same brakes we run on our STM 8 second cars, as with anything performance-oriented, please be sure to check and double-check every aspect for safety, EACH AND EVERY PASS! Please use your discretion and drive safely.
Shipping Times: 1-14 Days
Hand assembled in-house, please give us time to package your parts!
