STM Evo 7/8/9 Aluminum 2.5in Upper Intercooler Pipe Kit



Vehicle Fitment:
2001-2006 Evolution 7/8/9


The STM 2.5″ aluminum upper intercooler pipe kit for the Evo 7/8/9 features smooth, mandrel bent, lightweight 2.5″ aluminum piping with bead-rolled ends. Choose brushed, polished, gloss black or a durable wrinkle black finish. Available with either a TiAL, HKS, GReddy or stock blow off valve flange and includes an AIT bung. (A plug is included if AIT is not needed for your application).

Vehicle Fitment:
2001-2006 Evolution 7/8/9

Intake Manifold Fitment:
This kit is designed to work with any intake manifold that utilizes the factory throttle body location, including OEM, Skunk2, JMF Sheetmetal, Driven Innovations, AMS F1 and so on. This will not fit with the JMF Billet manifold.

Throttle Body Fitment:
Select the proper coupler size to match your throttle body in the purchase menu. We offer a 2.5-2.75″ to match the stock TB or a 2.5-3″ which fits with the S90 70/74 and the Full Blown. Please double check your TB size if you have another style.

Battery Fitment:
These pipes will not clear a factory-sized battery. The STM Evo 7/8/9 Small Battery Kit is recommended for install.

Intercooler Fitment:
These pipes have been test-fitted and are compatible with the STM, OEM and Buschur intercoolers, and they will also work with any aftermarket intercooler utilizing the stock-placement of piping such as ETS. The included 2.5″ coupler will fit a 2.5″ intercooler outlet (which is standard on most intercoolers.)

Blow Off Valve Fitment:
We offer the aluminum pipes with a flange for a TiAL, HKS, Greddy or stock blow off valve. The stock valve will require a custom hose for recirculation.

AIT Bung & Plug:

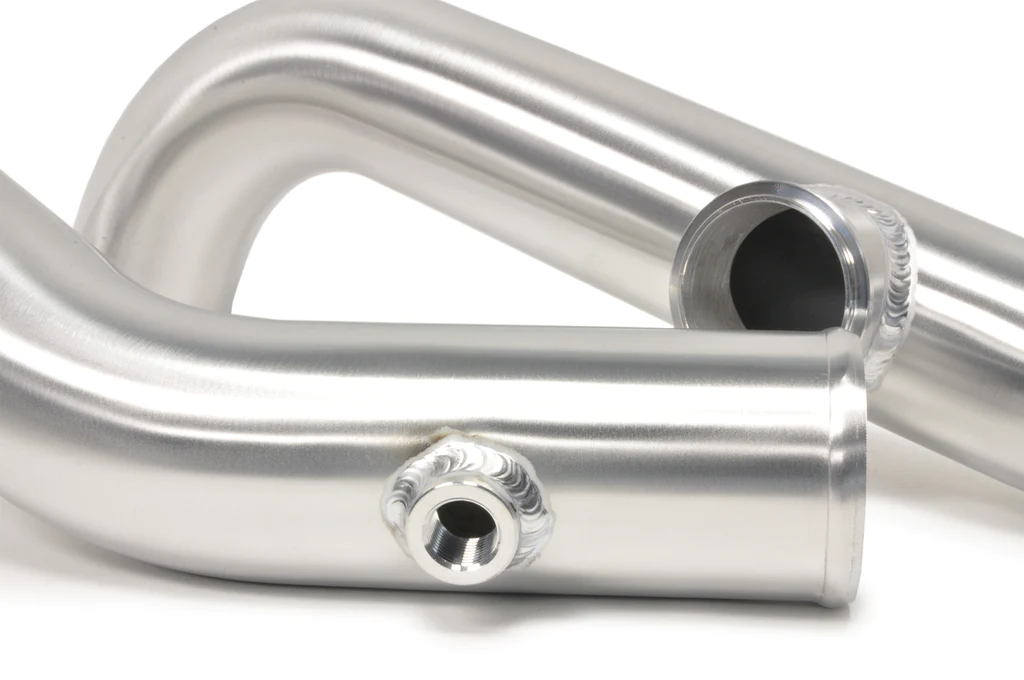

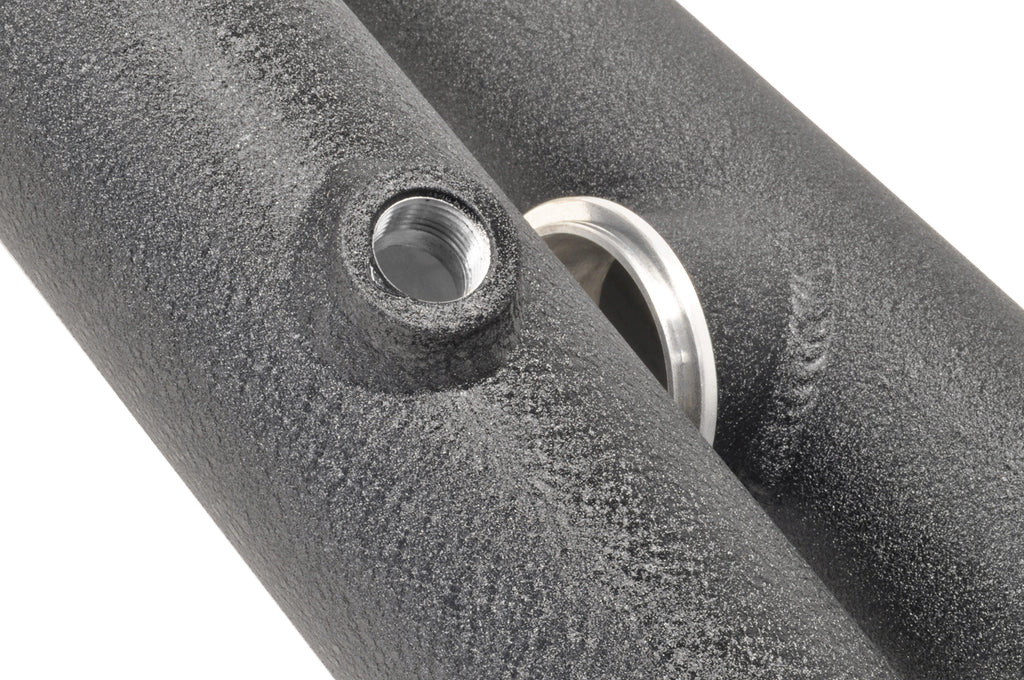

All STM UICP kits will include an AIT bung welded onto the bottom pipe that connects to the intercooler. If you do not need to run an AIT sensor, we also include a black plug to seal it off.

• Lightweight 2.5″ Mandrel-Bent Aluminum Piping
• Hand Fabricated In-House
• Bead-Rolled Pipe Ends
• High-Quality Couplers
• Stainless T-Bolt Clamps
• AIT Bung & Plug
• STM Products are made in the USA!

These pipes are aluminum and if you OVER-tighten the T-clamps there is a chance of crimping the pipe. This is not covered by the STM warranty.

(2) STM 2.5″ Aluminum Pipes

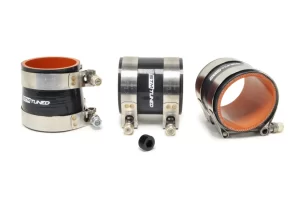

(2) 2.5″ Straight Couplers
(1) Reducer Coupler for Throttle Body
(6) Stainless Steel T-Bolt Clamps
(1) Vibrant Plug (10492)

• Choice of Blow Off Valve Flange
• Coupler Size for Throttle Body

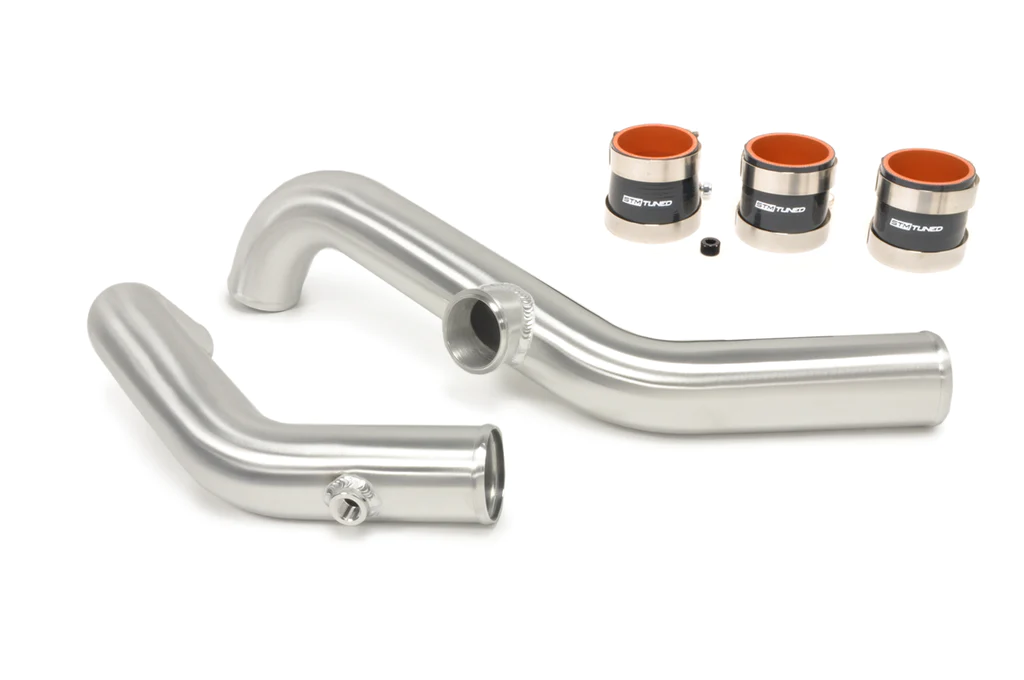

• Brushed Aluminum Finish

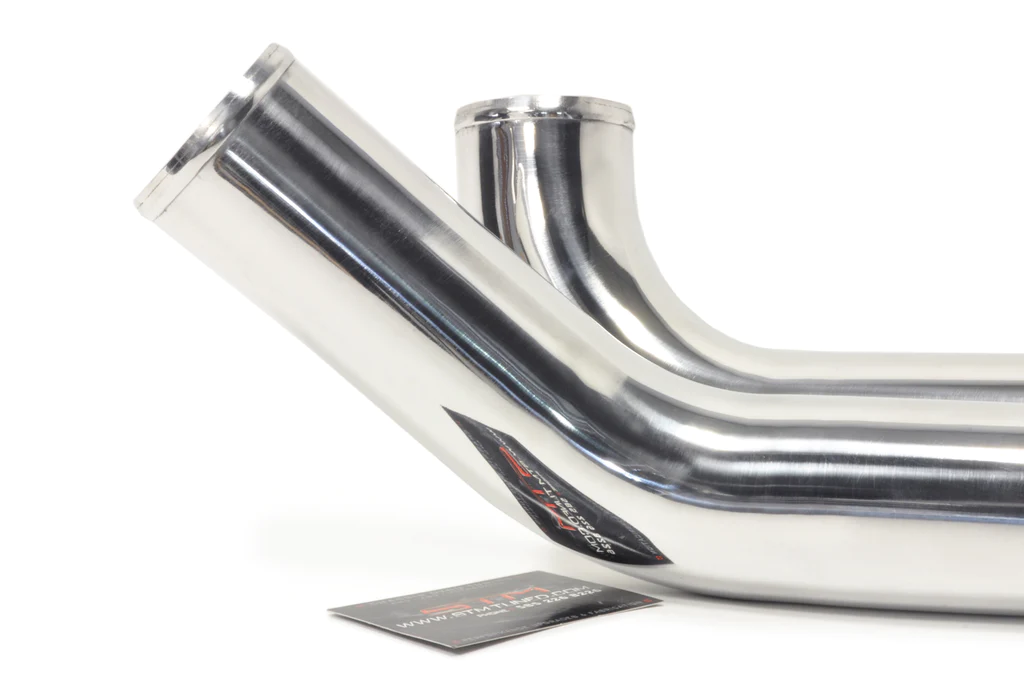

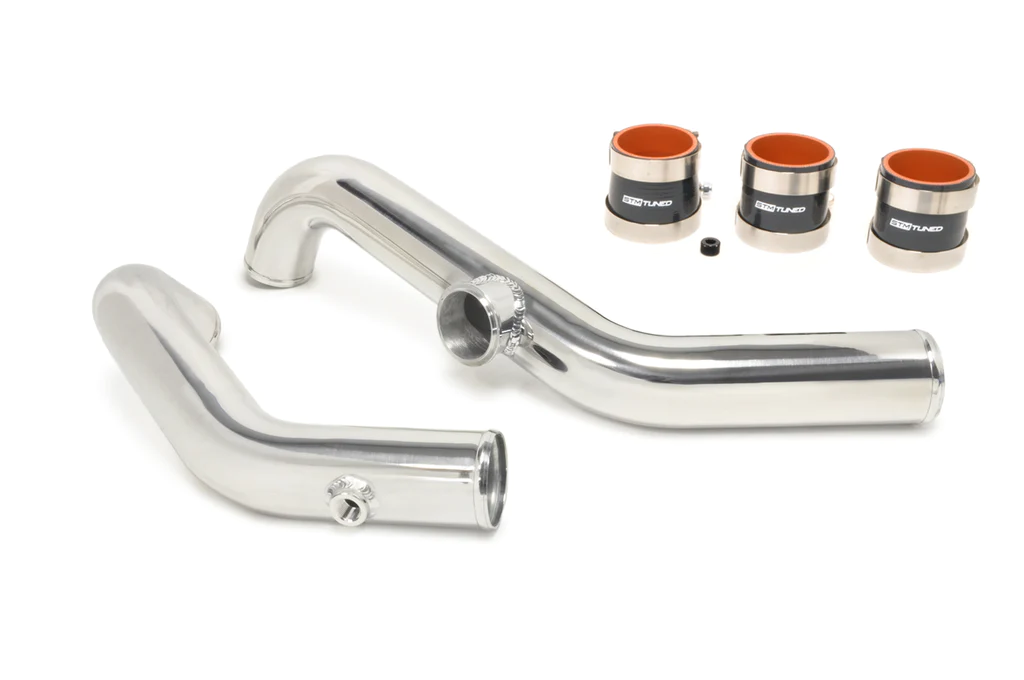

• Polished Aluminum Finish

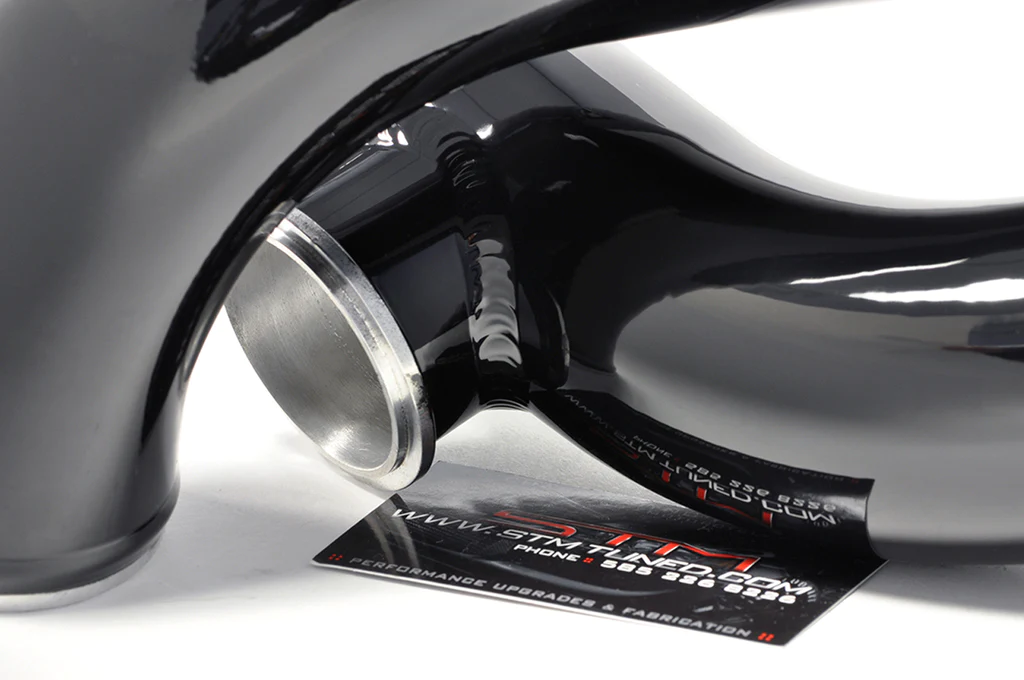

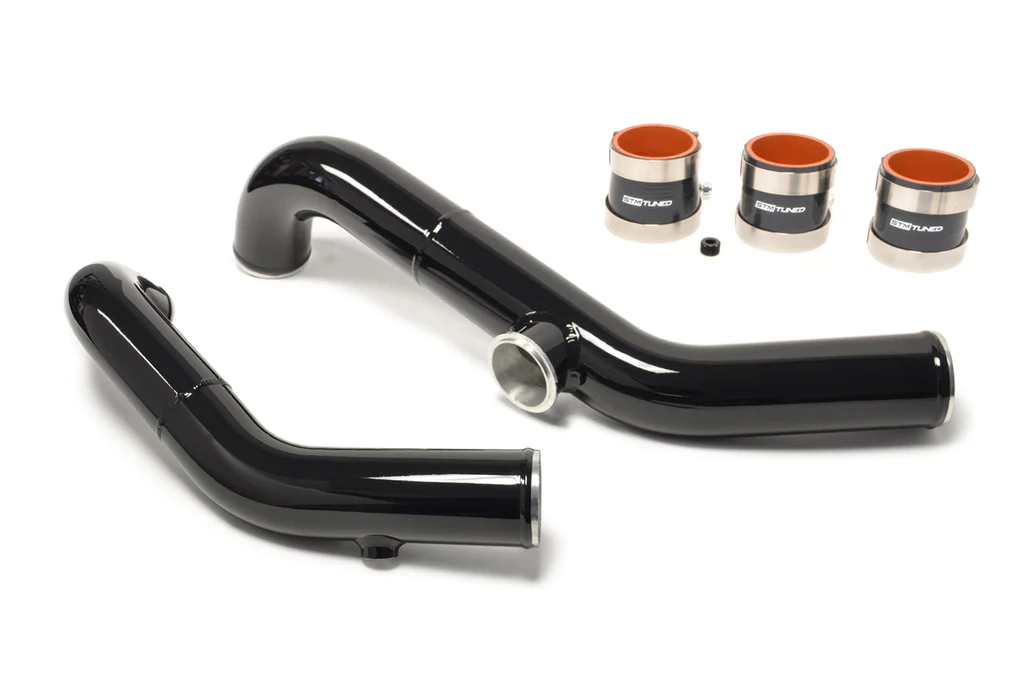

• Gloss Black Powdercoat Finish

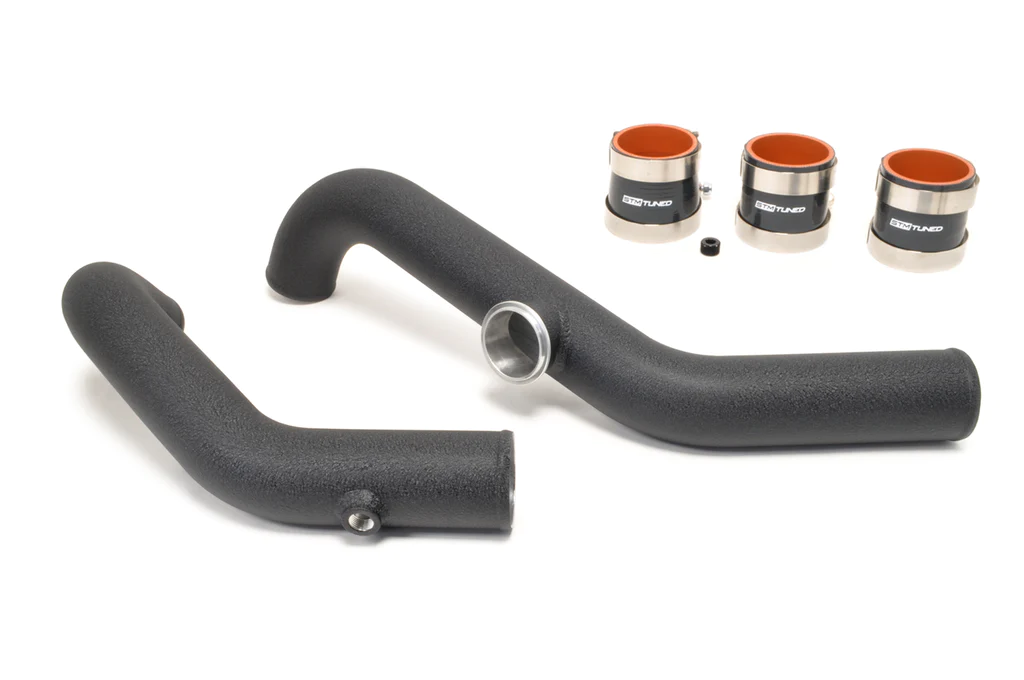

• Wrinkle Black Powdercoat Finish

Shipping Times: 1-14 Days
Hand crafted in New York, please give our fabricators time to create and finish your pipes!


Additional information


Brushed, Polished, Gloss Black, Wrinkle Black

BOV Flange:

Stock BOV Flange, TiAL BOV Flange, HKS BOV Flange, GReddy BOV Flange

Throttle Body Coupler:

for 2.75" Throttle Body, for 3" Throttle Body
