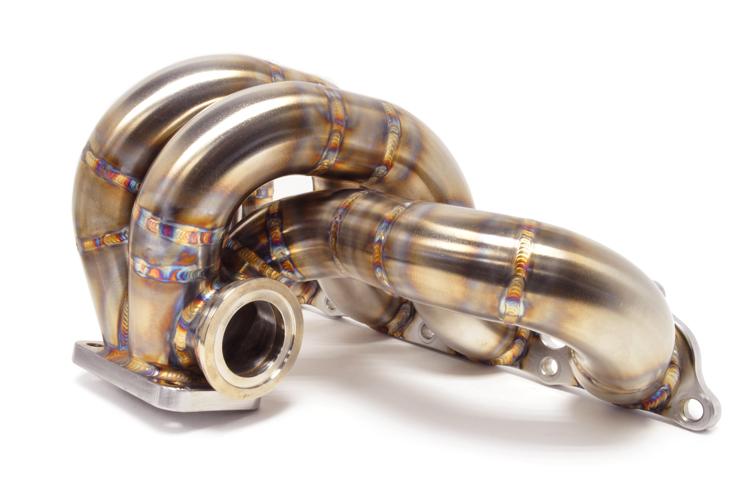

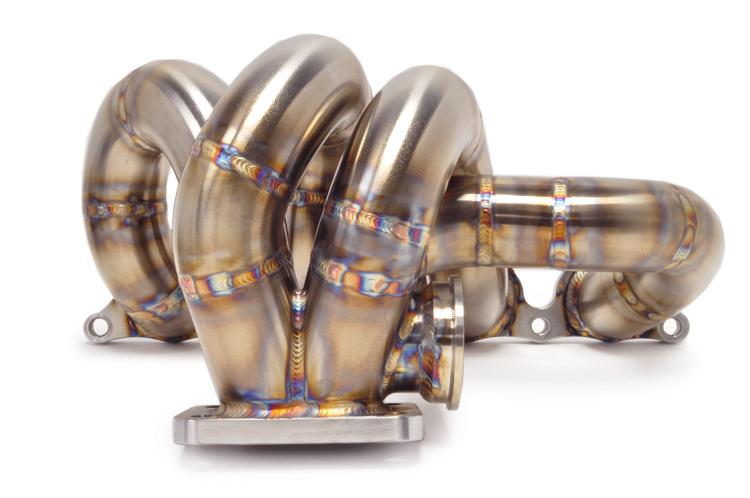

The STM T3 Turbo Manifold is tig welded in-house of schedule 10 stainless steel, flanged for a T3 turbo. Fits both 1G and 2G DSM.
1990-1999 Eclipse GST/GSX
1990-1998 Talon TSi
1990-1994 Laser RS
* Fits with a 6-bolt block only. The 7-bolt block has an outward casting that will hit the turbo. It will not fit, sorry.
• Tig-Welded and Back-Purged
• Flanged for T3 turbo and TiAL 44mm MVR Wastegate
• Available with or without the wastegate flange.

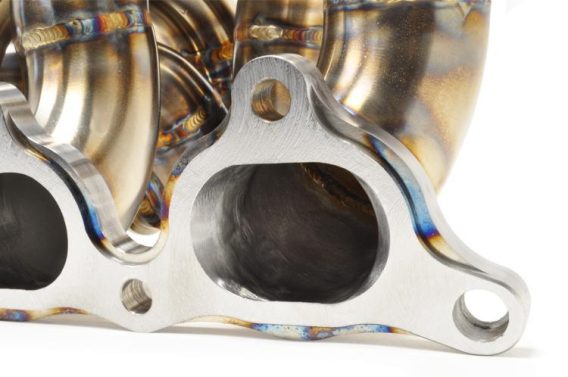

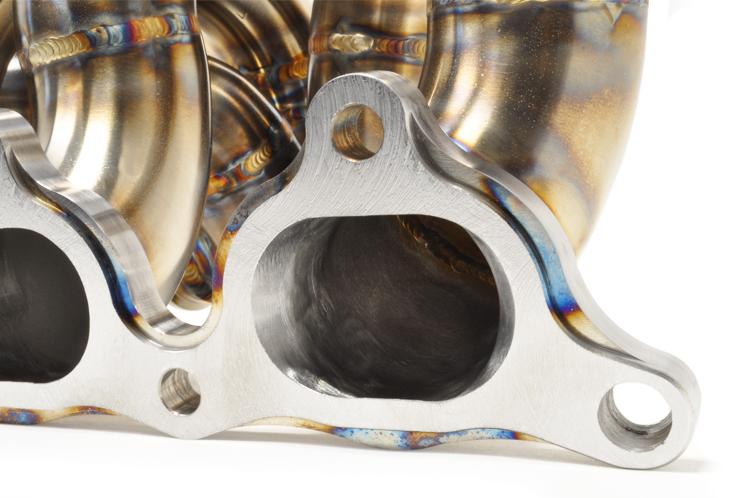

• Mild steel head flange to prevent pulling out studs
• Schedule 10 stainless steel runners
• T3 Flange is threaded for and requires M10 X 1.5 Bolts

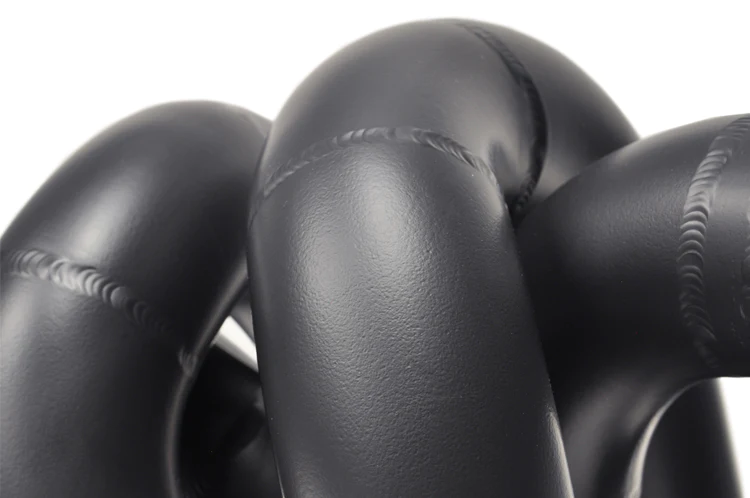

• High temp ceramic coating is available (2000°F) (+$250)
Shipping Times: 2-4 Weeks
One of a kind and built to order. Each manifold is hand built and unique, so the runner design may vary slightly from piece to piece. Ceramic coating will add 2 weeks to shipping time.
(1) STM Manifold
