AEM MAP/PSIa Sensors (Stainless Steel) 15-30-50-75 PSI

$155.27 – $159.94

-

AEM offers high quality stainless steel PSIa sensors in 15 (1BAR), 30 (2BAR), 50 (3.5BAR), 75 (5BAR) and 100 (7BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure.

SKU: N/A Categories: , Tags: , , , ,

Description

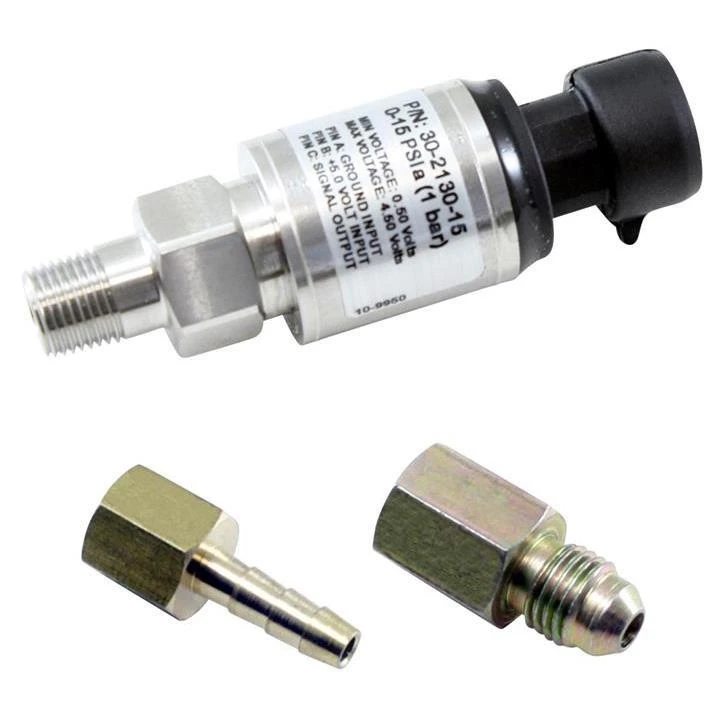

30-2130-15 – 15 PSIa or 1 Bar Stainless Sensor Kit

  • Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
  • Operating Temp: -40C to 105C / -40F to 221F
  • Burst Pressure: 150PSI
  • Response Time: < 1ms
  • Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
  • Sensor Body: Stainless Steel
  • Wetted Materials: 304L & 316L Stainless Steel
  • Thread: 1/8″ NPT Male Thread
  • Weight: < 85 Grams
  • Supply Current:
  • Output: .5 to 4.5Vdc Linear
  • Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
  • Includes: 15 PSIa or 1 Bar Stainless Sensor, Connector, Pins, Pin Lock, 1/8″ NPT to -4 Adapter & 1/8″ NPT to 3/16″ Barb Adapter

30-2130-30 – 30 PSIa or 2 Bar Stainless Sensor Kit

  • Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
  • Operating Temp: -40C to 105C / -40F to 221F
  • Burst Pressure: 300PSI
  • Response Time: < 1ms
  • Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
  • Sensor Body: Stainless Steel
  • Wetted Materials: 304L & 316L Stainless Steel
  • Thread: 1/8″ NPT Male Thread
  • Weight: < 85 Grams
  • Supply Current:
  • Output: .5 to 4.5Vdc Linear
  • Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
  • Includes: 30 PSIa or 2 Bar Stainless Sensor, Connector, Pins, Pin Lock, 1/8″ NPT to -4 Adapter & 1/8″ NPT to 3/16″ Barb Adapter

30-2130-50 – 50 PSIa or 3.5 Bar Stainless Sensor Kit

  • Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
  • Operating Temp: -40C to 105C / -40F to 221F
  • Burst Pressure: 500PSI
  • Response Time: < 1ms
  • Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
  • Sensor Body: Stainless Steel
  • Wetted Materials: 304L & 316L Stainless Steel
  • Thread: 1/8″ NPT Male Thread
  • Weight: < 85 Grams
  • Supply Current:
  • Output: .5 to 4.5Vdc Linear
  • Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
  • Includes: 50 PSIa or 3.5 Bar Stainless Sensor, Connector, Pins, Pin Lock, 1/8″ NPT to -4 Adapter & 1/8″ NPT to 3/16″ Barb Adapter

30-2130-75 – 75 PSIa or 5 Bar Stainless Sensor Kit

  • Accuracy: +/- 0.5% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
  • Operating Temp: -40C to 105C / -40F to 221F
  • Burst Pressure: 500PSI
  • Response Time: < 1ms
  • Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
  • Sensor Body: Stainless Steel
  • Wetted Materials: 304L & 316L Stainless Steel
  • Thread: 1/8″ NPT Male Thread
  • Weight: < 85 Grams
  • Supply Current:
  • Output: .5 to 4.5Vdc Linear
  • Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
  • Includes: 75 PSIa or 5 Bar Stainless Sensor, Connector, Pins, Pin Lock, 1/8″ NPT to -4 Adapter & 1/8″ NPT to 3/16″ Barb Adapter
