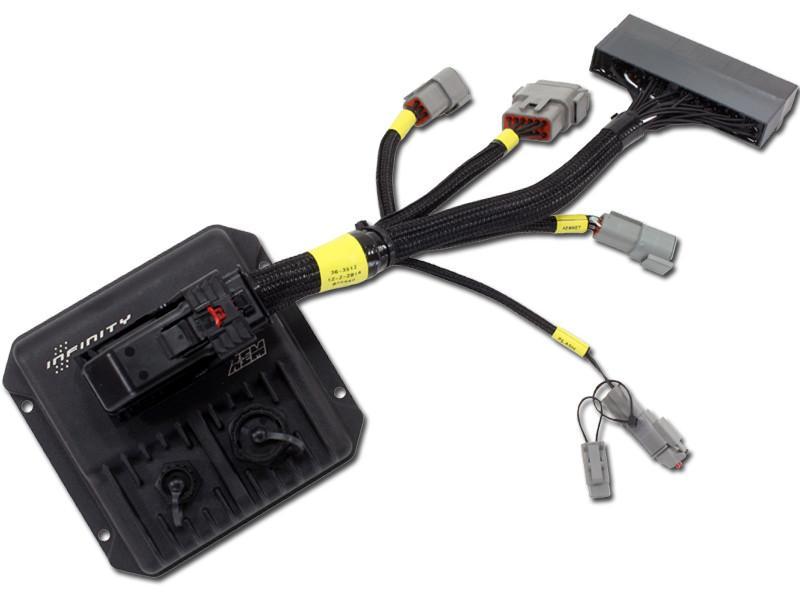

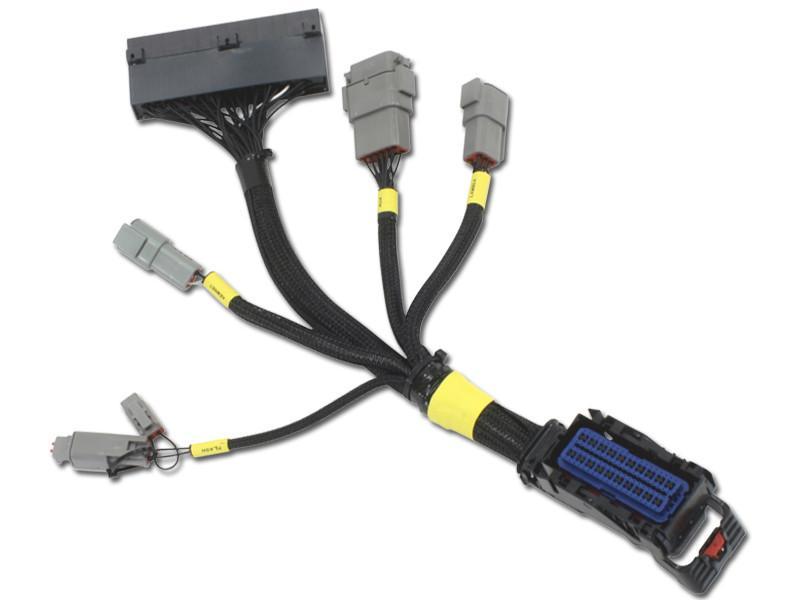

Infinity Mitsubishi Evo VIII Plug & Play Harness with Expansion Port
Once you have determined which Infinity ECU will best support your 2003-05 Mitsubishi Evo VIII M/T engine, you will need to purchase the Evo VIII Plug & Play adapter harness (PN 30-3511). AEM’s Plug & Play harness for Mitsubishi Evo VIII engines includes a Wideband O2 connector, AEMnet connector for communication with other AEMnet enabled devices and an auxiliary connector with a High Performance DTM-Style 12P connector for adding common aftermarket sensors including fuel pressure, air inlet temperature, MAP, oil temperature and ethanol content sensor. The expansion port also includes a sensor ground, 5v reference, 12v power from relay and high side output for activating a relay or solenoid, a low side output for boost control and analog inputs for mode switch and no-lift shift.
The Infinity EMS delivers high-end engine control for the racing masses at a fraction of the cost. The Infinity Series 5 for Mitsubishi Evo VIII race engines is even more affordable than its larger Series 7 version because it is designed for smaller racing engines using low impedance injectors up to 6 cylinders or race engines driving up to 8 high impedance injectors. It features a smaller footprint than the Infinity Series 7 (5.855” x 5.55” x 1.8”) and a single, weatherproof 80-pin connector.
