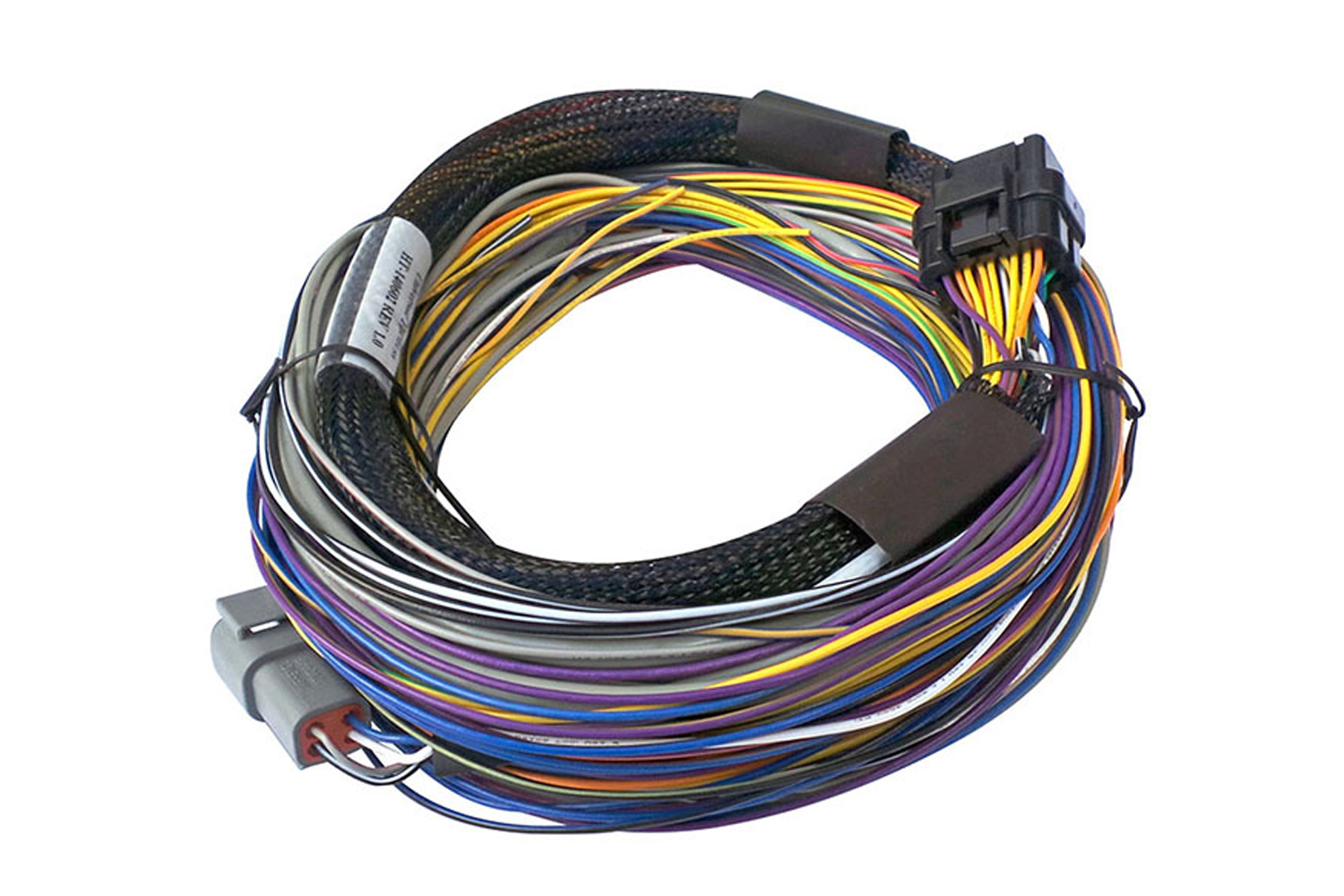

Ideal for dedicated race cars, engine swaps and custom wiring jobs. The Universal Wire-in Harness has a set of ECU connectors at one end and unterminated wires at the other. All the wires at the unterminated end are colour coded and clearly labelled. Connect your Haltech ECU to the terminated end and follow your wiring diagram for all the engine connections. Load your base map and you’re ready to go!
Colour coded and labelled wires that match the detailed wiring diagram for a confusion free construction process.
The wiring diagram is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.

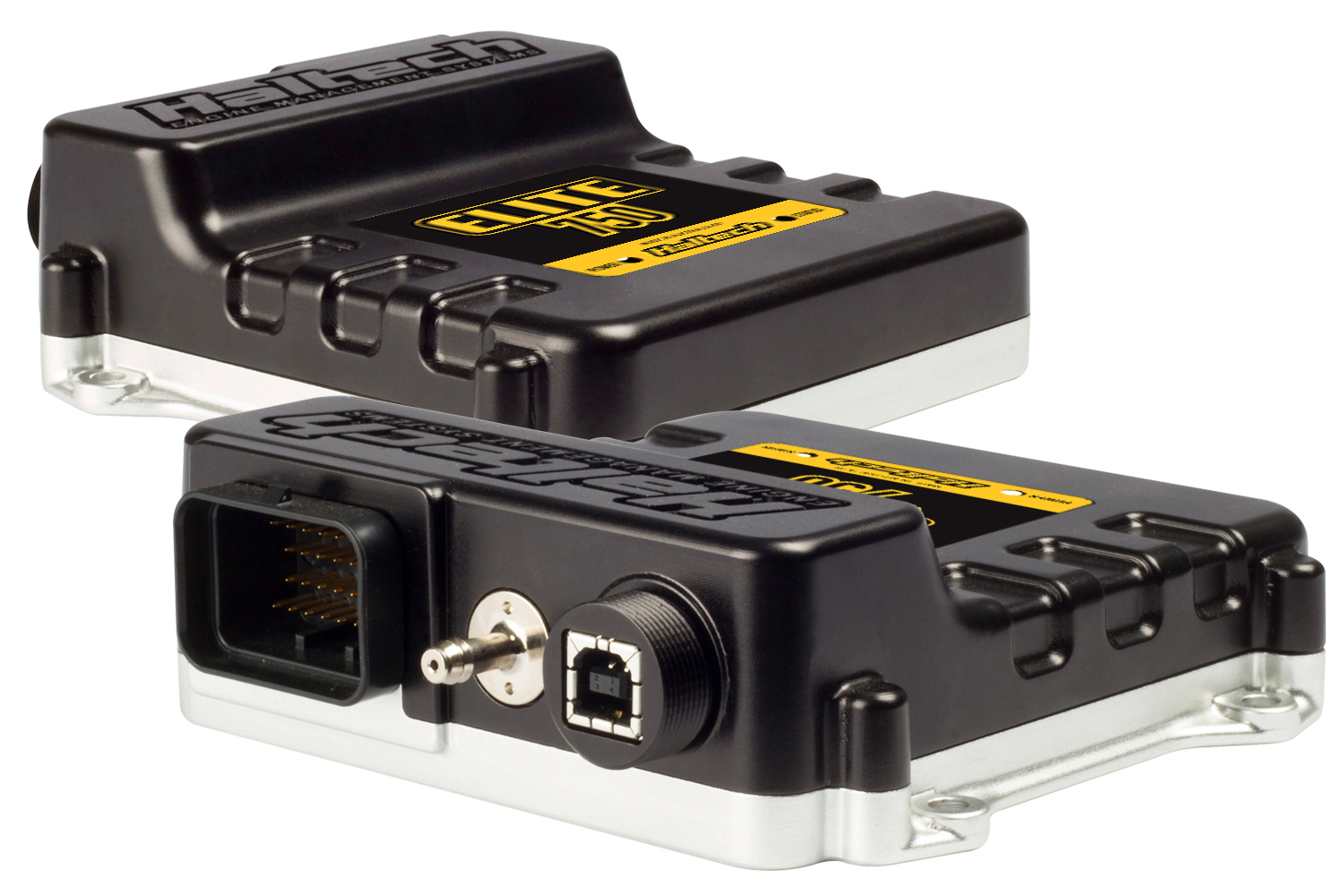

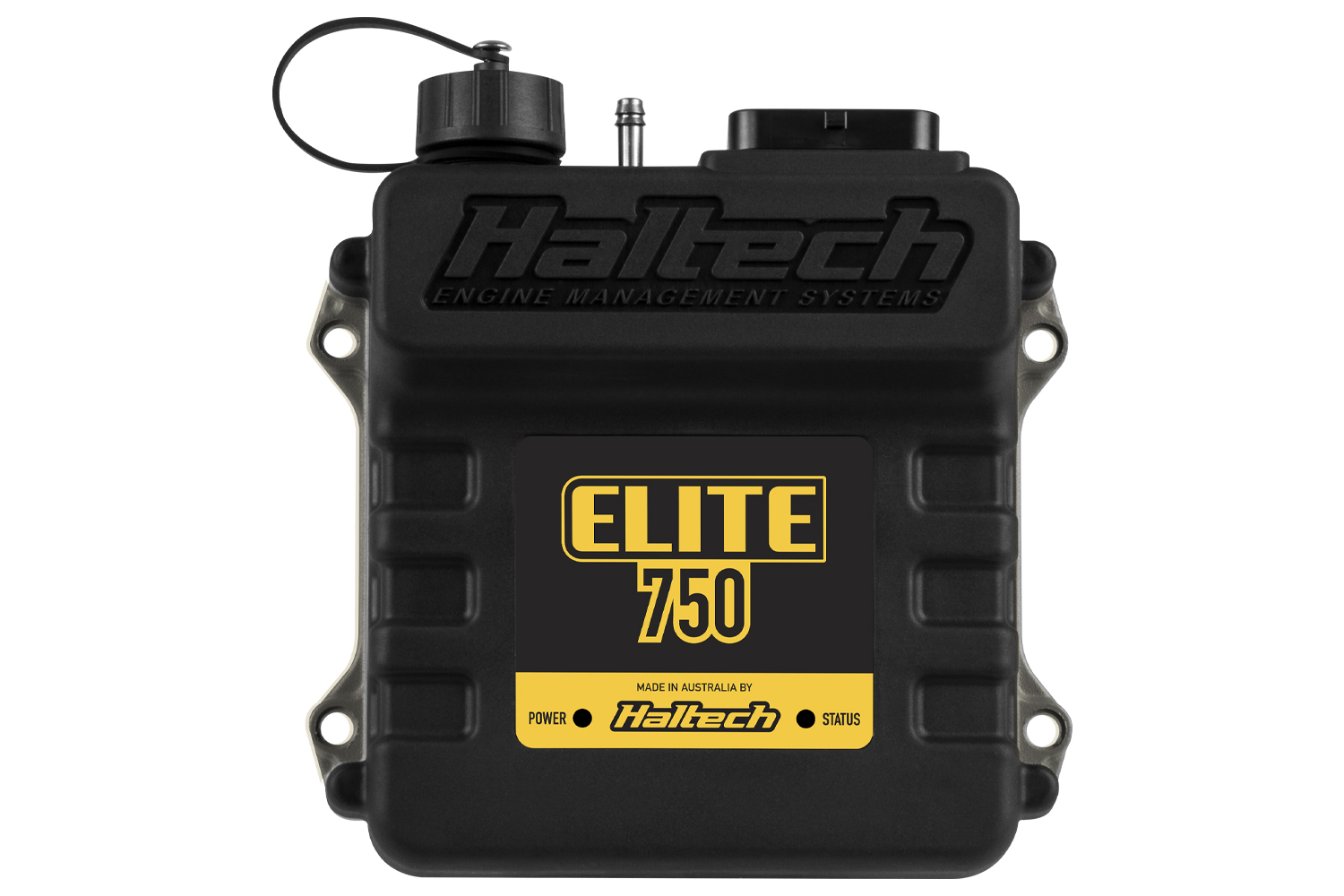

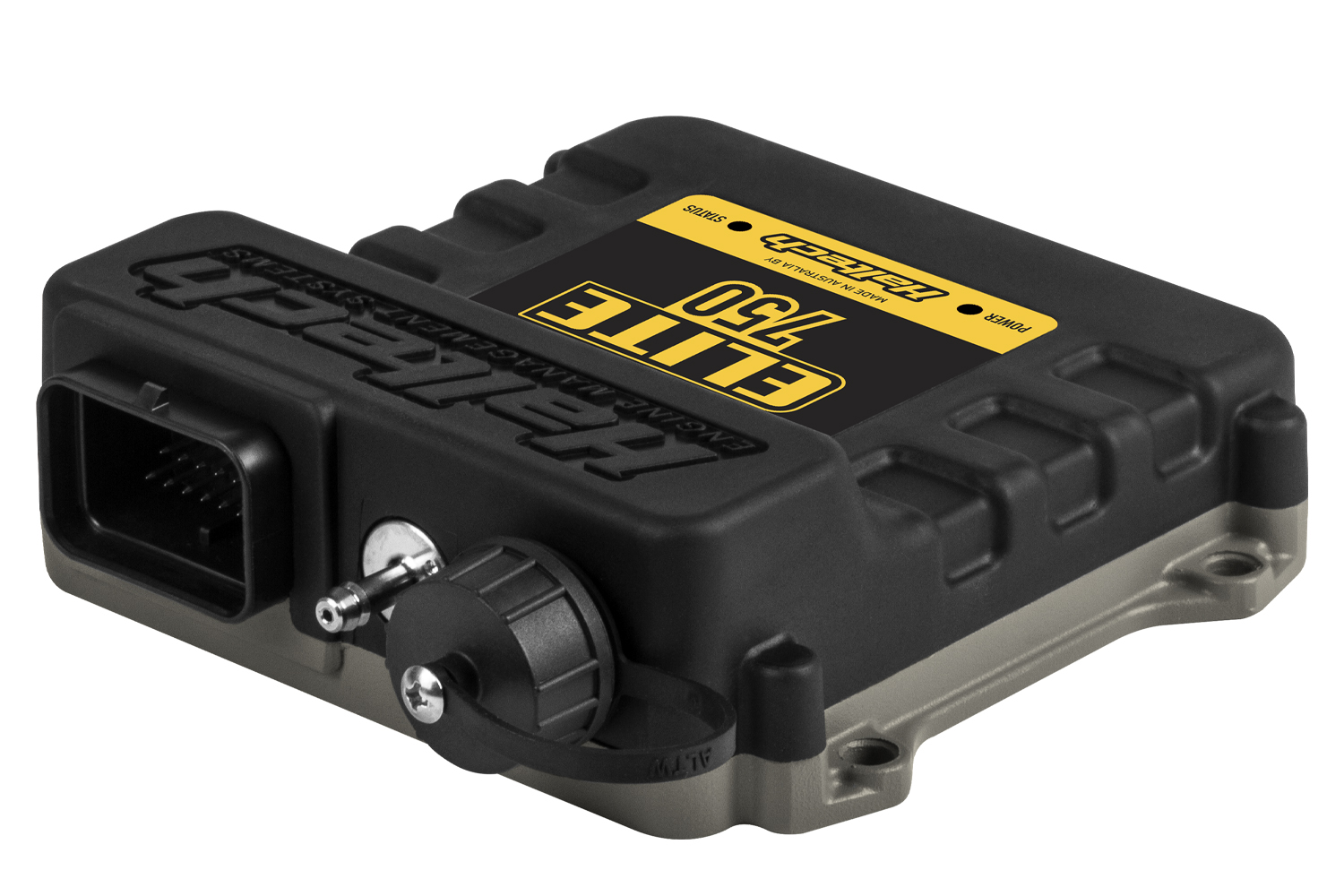

The Elite 750 is an entry-level ECU offering many features available on the more advanced Elite 1500/2500 at an affordable price. Featuring a robust, environmentally sealed, waterproof case, 6 fuel and 6 ignition channels, on-board data logging and flex fuel tuning the Elite 750 is a powerful, compact ECU. Alongside the Elite 750 ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.
Supports 1 to 8 Cylinder engines
1 to 3 Rotor engines
Normally aspirated or forced induction
Load sensing by Throttle Position (TPS), Manifold
Pressure (MAP) or Mass Air Flow (MAF)
Staged, Sequential, semi sequential, batch or multipoint injection patterns
Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
Connect to a wide range of display dashes and expansion devices via CAN.
Waterproof case (IP67) (with USB cover fitted)
34 position AMP connector
6 x Fuel Injection Outputs (peak and hold (0-8A peak / 0-2A hold)
6 x Ignition Outputs
2 x Dedicated Engine Position inputs with extensive trigger type support
2 x Digital Pulsed Inputs
5 x Digital Pulsed Outputs
2 x Analogue Voltage Inputs
3 x Dedicated Inputs (Throttle Position, Coolant Temperature & Air Temperature)
Internal 3Bar MAP sensor rated up to 200kPa of boost (2Bar/29psi)
Up to 45 channels of Input & Output (I/O) expansion (via CAN)
USB Laptop Communication (Windows)
On-board data logging
ESP Calibration Software – Intuitive and easy to use
This harness when installed in conjunction with a Haltech Elite ECU opens the door to virtually limitless performance modification and tuning of your vehicle.
Fully programmable systems allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions.
Low Impedance Injector control with Programmable Injector Peak and Hold
Flex Fuel Function (Direct sensor input) – Tune your engines boost, fuel and ignition by ethanol content
Flexible tuning setup for Petrol (Gasoline), Methanol and Ethanol allows you to simply select your fuel type E85 flex-fuel ready – direct connection to sensor
Closed Loop O2 Control – for precise tuning (With optional external CAN O2 Wideband Controller Kit). Long-Term Learning
Closed Loop Idle Speed Control with learning for consistent idle stability. Requires 1 or 2 user-defined outputs (BAC type)
Long-term learning (Autotune) on fuel, cam & idle control maps (up to 3D)
Laptop data logging -Data log all available channels directly to your laptops hard drive for both tuning and diagnostics
CAN Bus communication for Haltech Dashes and expansion devices or OBDII (view live engine data & set and clear diagnostic trouble codes)
2 Injection Stages for use with Rotary Engines
Variable cam control – Independently control a single camshaft – Requires a minimum of 1 user-defined input & output.
Variable Cam Control supported for engines with a single cam sensor only, located on the variable cam. VVT Engines Supported – Toyota 1JZ/2JZ VVT, Toyota 1ZZ and 2ZZ, Mazda MX5 NB with VVT, Mazda / Ford Duratec, Suzuki M Series
Tuning Table Resolution up to 16 x 32
Limitless tuning flexibility -Tune your engine by a combination of 3D tuning tables combined with 3D per cylinder compensations and multiple user definable corrections
tune by a combination of manifold pressure, throttle position, cam position, ethanol content, gear, road speed, race time, EGT, shock travel, ride height or any channel for ultimate flexibility – Dual mapping is a thing of the past.
Per Cylinder Tuning Correction – 3D
Wideband O2 – Connect up to 2 Channels via CAN expansion devices
Thermocouples/EGT (Exhaust Gas Temperature) – Connect up to 12 Channels via external CAN expansion devices
Nitrous control with advanced programming of wet or dry nitrous kits with on/off delays.
3D fuel and ignition corrections available.
Boost Control -Intelligent 3D Open loop, with flexible user-definable axis and 6 fully user definable corrections
modes – example boost by gear, road speed etc.
Only logged in customers who have purchased this product may leave a review.
Includes: 1 x Haltech PD16, 1 x SurLok 120A Connector Red, 1 x USB Key, 1 x USB-C Cable, 1 x USB-C Dust Cap, 1 x Haltech Fabric Keytag, 1 x Quick Start Guide Booklet, Mounting Hardware – (2 x M5 Bolts and Nuts)
Notes: The NEXUS PD16 is Haltech’s new power distribution product. Boasting new, innovative yet user-friendly technology, it sets a new market standard for power distribution systems. Designed to integrate seemlessly into your existing Haltech Elite or Nexus engine management system, the PD16 delivers safe, dependable power delivery to your vehicle.
Suits: Universal 1-12 cylinder or 2-3 rotor applications.

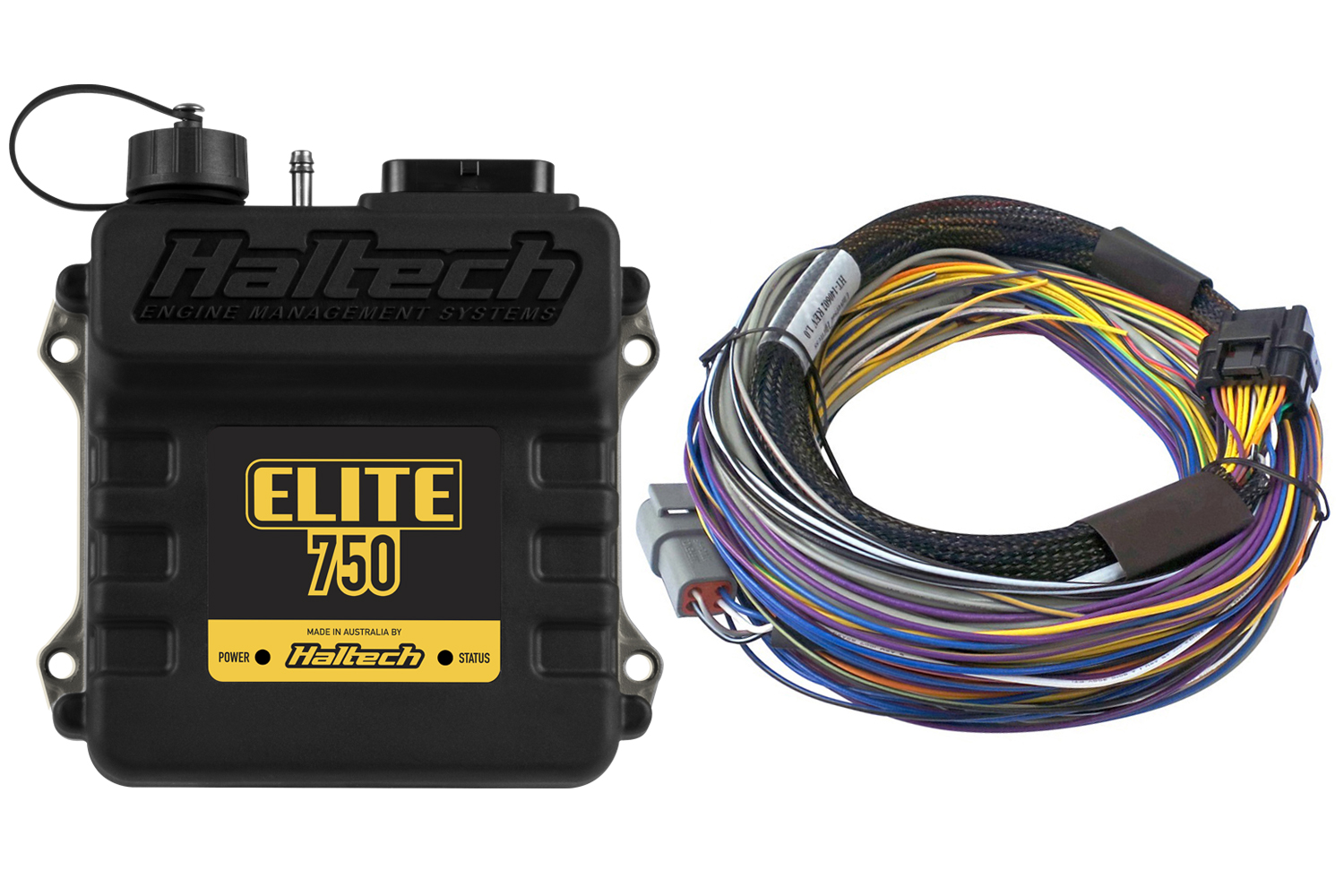

Includes: Elite 750 ECU, Premium Universal Wire-In Harness. Firewall grommet, moulded 6 power circuit Haltech fuse box and lid. 2 relays, 6 fuses and pins for the 6 spare power circuits. Waterproof USB cap, USB programming cable and software USB Key.
