STM 2G DSM Standard Placement V-Band Hot Parts Kit


The STM Standard Placement V-Band Hot Parts Kit for the 95-99 2G DSM includes the manifold, down pipe, dumptube and O2 housing, along with the gaskets and matching PTE V-Band Clamps. This kit is designed to work with the PTE 6266, 6466 or 6766 turbo. Each item is a work of stainless steel art. Tig-welded and back-purged, the STM team hand-fabricates each and every piece in-house.


Vehicle Fitment:
1995-1999 2G DSM
(Eclipse GST/GSX & Talon TSi Turbo)
• Fits PTE 6266, 6466 or 6766
• Requires custom lower intercooler pipe

• Hand Fabricated
• Tig-Welded
• Back-Purged
• Flanged for TiAL 44mm MVR Wastegate
• For PTE 6266, 6466 or 6766 Turbo
• Mild Steel Head Flange to Prevent Pulling Out Studs
• Schedule 10 1.5″ Stainless Steel Manifold Runners
• Down pipe bolts to any factory-location cat or test pipe (3″ 2-Bolt)

Made in the USA!
Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects.

One of a kind and built to order.
Each manifold is hand built and unique, so the runner design may vary slightly from piece to piece. Accounting for fabrication time, our manifolds generally ship in 2 weeks.

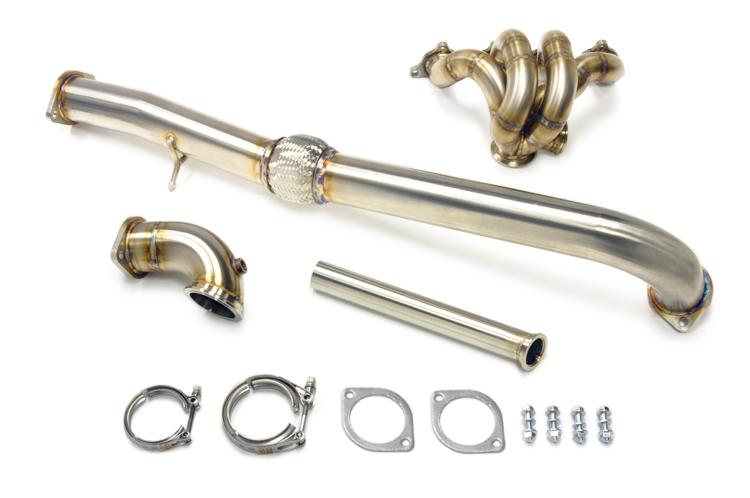

(1) STM V-Band Manifold

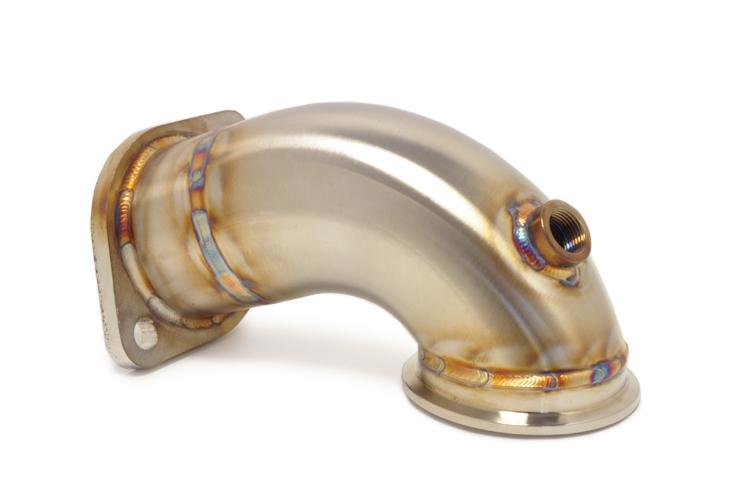

(1) STM O2 Housing
(1) STM Dump Tube
(1) STM Downpipe
(1) V-Band Clamp for Turbo to Manifold (PTP071-1027)
(1) V-Band Clamp for Turbo to Downpipe (PTP071-1029)
(2) 3″ Remflex Gaskets for Downpipe
(4) Mounting Hardware – Bolts, Nuts Washers

Install Notes:
Includes standard under-car dump tube.
Don’t forget your nuts! STM Exhaust Manifold Stud & Nut Kit.
