STM Evo 7/8/9 Aluminum 3in Race Upper Intercooler Pipe Kit



Vehicle Fitment:
2001-2006 Evolution 7/8/9
• Does not fit with ACD


The STM 3″ aluminum upper intercooler race pipe kit for the Evo 7/8/9 features large diameter 3″ piping for those needing a little extra capacity for boost! Choose brushed, polished, gloss black or wrinkle black. Available with either a TiAL, HKS or GReddy BOV flange and includes an AIT bung. (A plug is included if AIT is not needed for your application).

Vehicle Fitment:
2001-2006 Evolution 7/8/9
• Does not fit with ACD
• We have a lot of fitment information below, but if you have any questions about your particular setup, just give us a call!

Intake Manifold Fitment:
This kit is designed to work with any intake manifold that utilizes the factory throttle body location, including OEM, Skunk2, The current  version of the JMF Sheetmetal, Driven Innovations, AMS F1 and so on. This will not fit with the JMF Billet manifold.

Throttle Body Fitment:
Select the proper coupler size to match your throttle body in the purchase menu. We offer a 2.75″ option to match the stock TB or 3″ which fits with the S90 70/74 and the Full Blown. Please double check your TB size if you have another style.

Battery Fitment:
These pipes will not clear a factory-sized battery. The STM Evo 7/8/9 Small Battery Kit is recommended for install.

Intercooler Fitment:
These pipes have been test-fitted and are compatible with the STM, OEM and Buschur intercoolers, and they will also work with any aftermarket intercooler utilizing the stock-placement of piping such as ETS. Please confirm which size coupler you’ll need from the bottom pipe to your intercooler outlet.

Blow Off Valve Fitment:
We offer the aluminum race pipes with a flange for a TiAL, HKS or Greddy blow off valve.

AIT Bung & Plug:

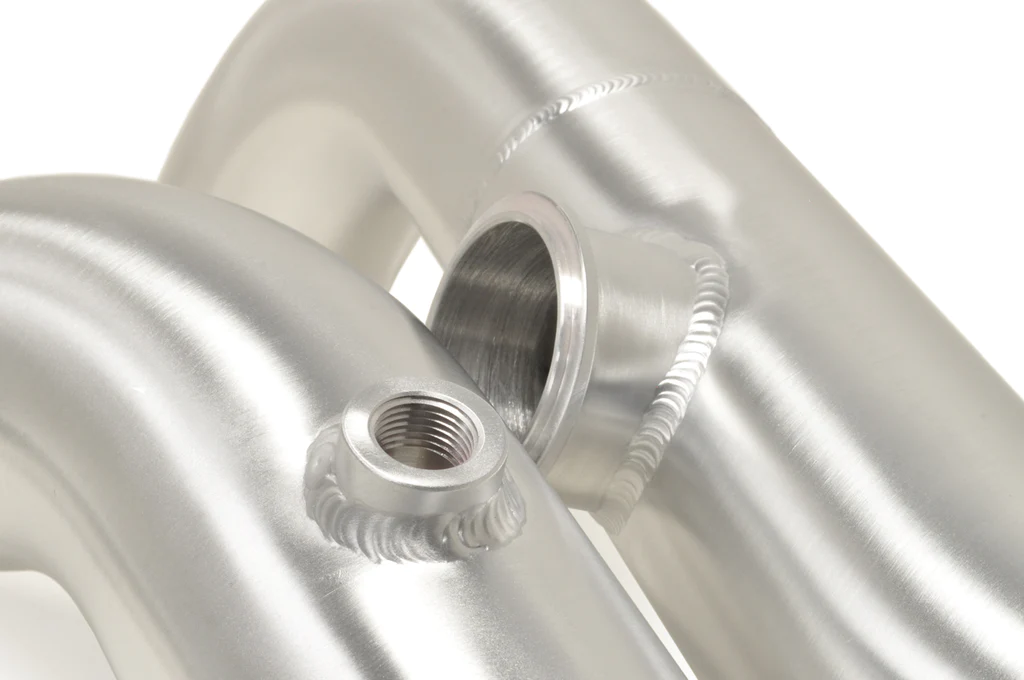

All STM UICP kits will include an AIT bung welded onto the bottom pipe that connects to the intercooler. If you do not need to run an AIT sensor, we also include a black plug to seal it off.

• Lightweight 3″ Mandrel-Bent Aluminum Piping
• Hand Fabricated In-House
• Bead-Rolled Pipe Ends
• High-Quality Couplers
• Stainless T-Bolt Clamps
• AIT Bung & Plug
• Good for 50 PSI
• STM Products are made in the USA!

These pipes are aluminum and if you OVER-tighten the T-clamps there is a chance of crimping the pipe. This is not covered by the STM warranty.

(2) STM 3″ Aluminum Pipes

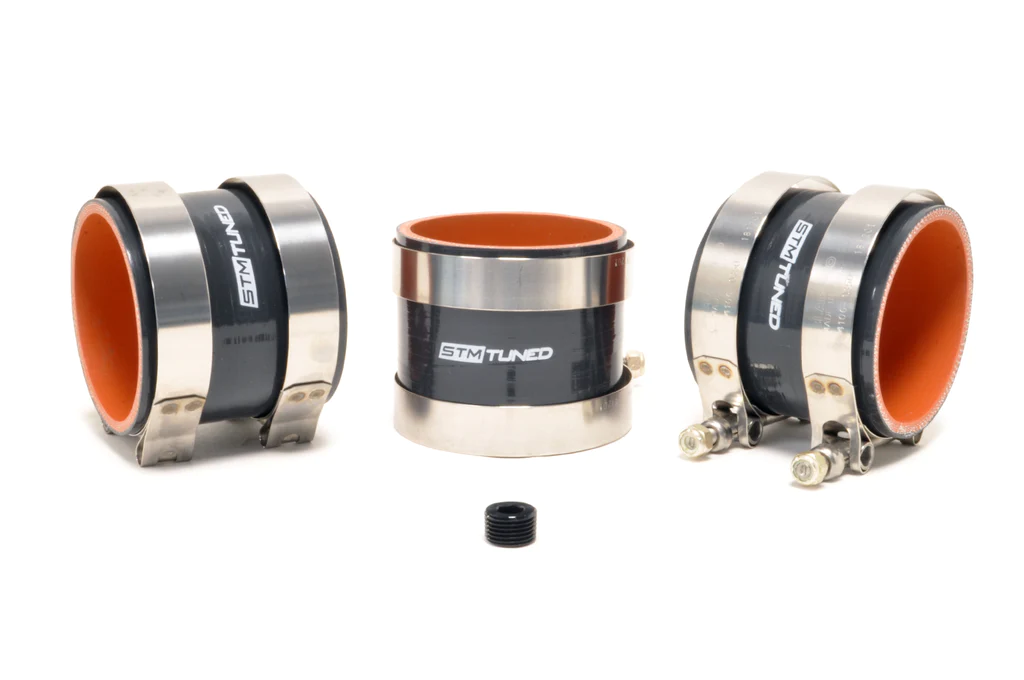

(3) Couplers
(6) Stainless Steel T-Bolt Clamps
(1) Vibrant Plug (10492)

• Choice of Blow Off Valve Flange
• Coupler Size for Throttle Body (TB)
• Coupler Size for Intercooler (IC)

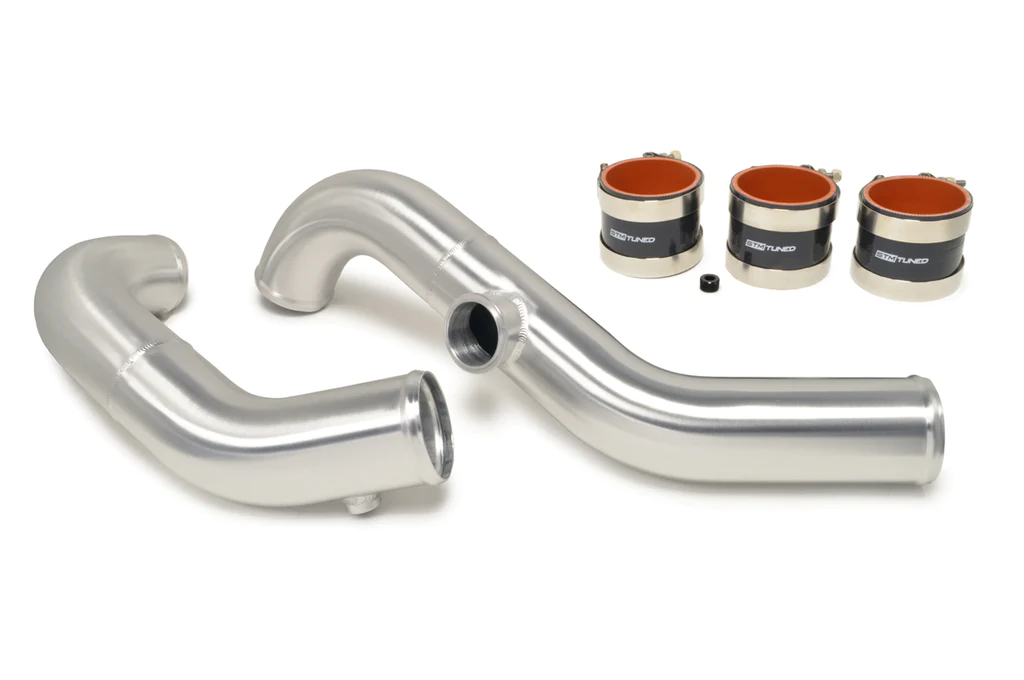

• Brushed Aluminum Finish

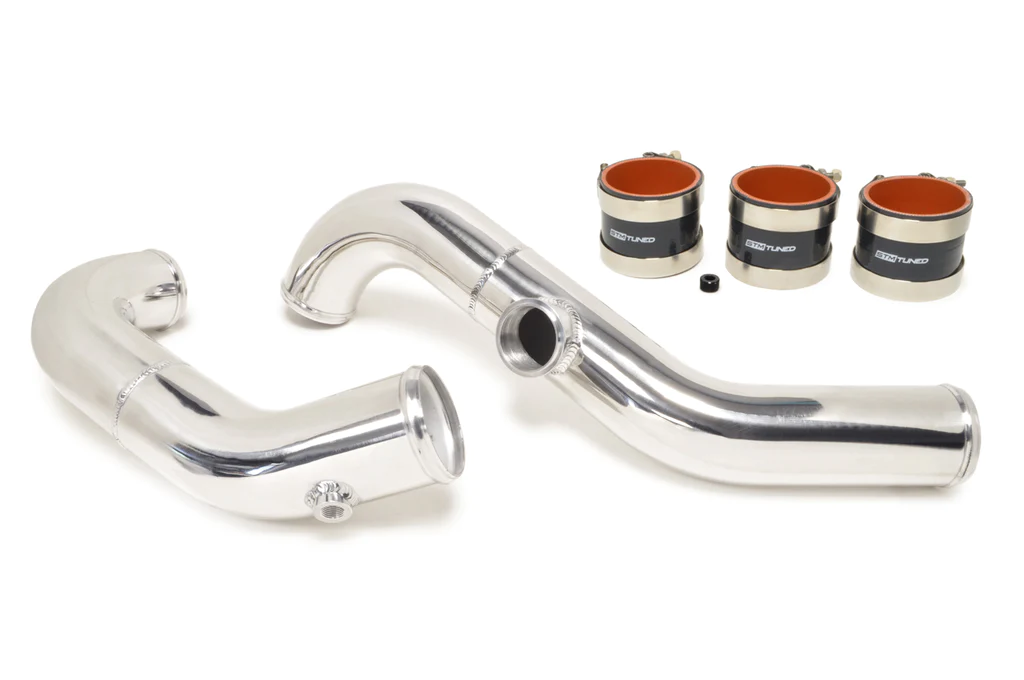

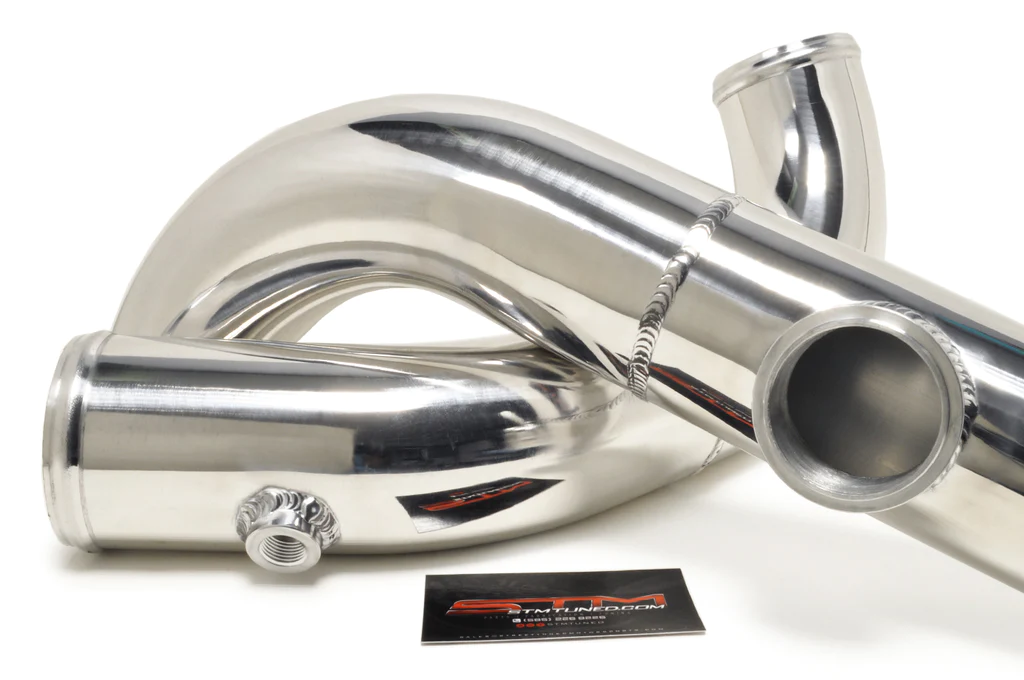

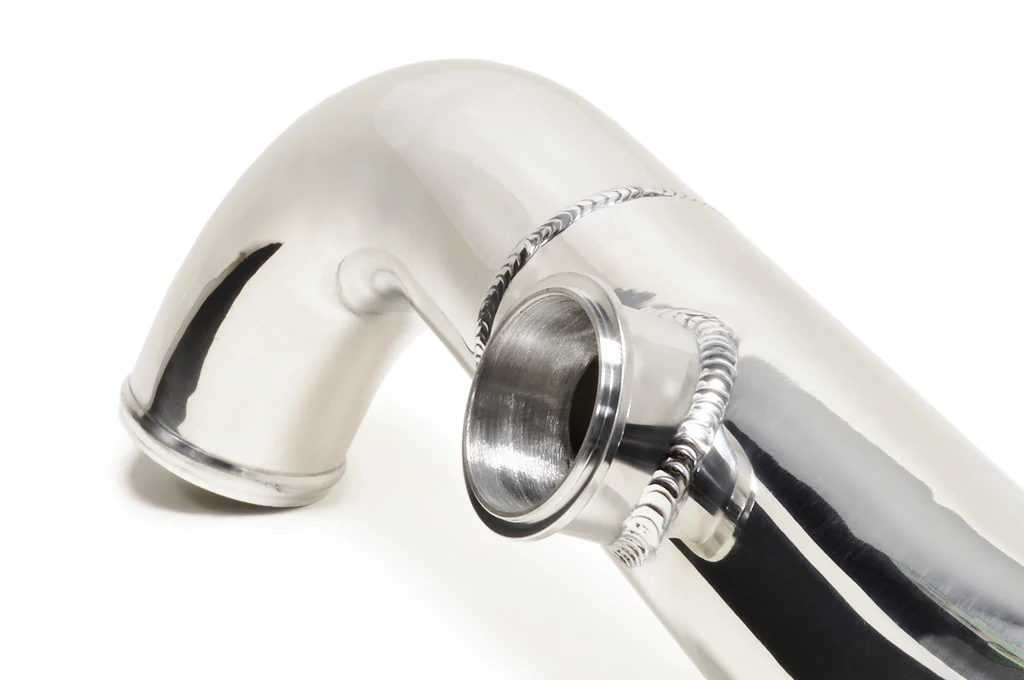

• Polished Aluminum Finish

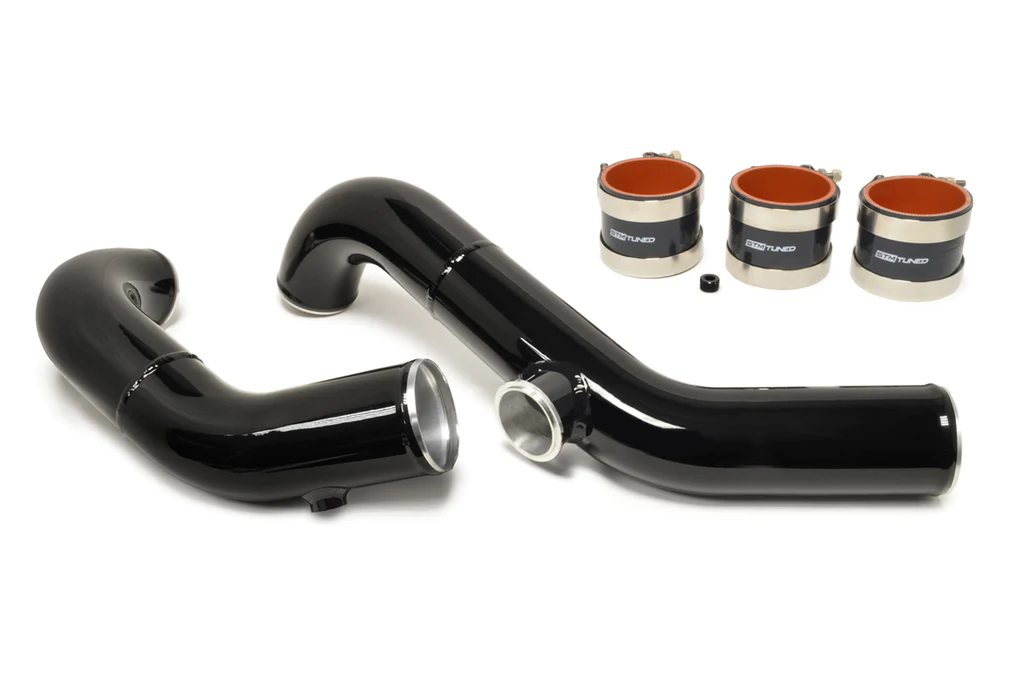

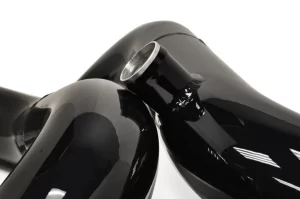

• Gloss Black Powdercoat Finish

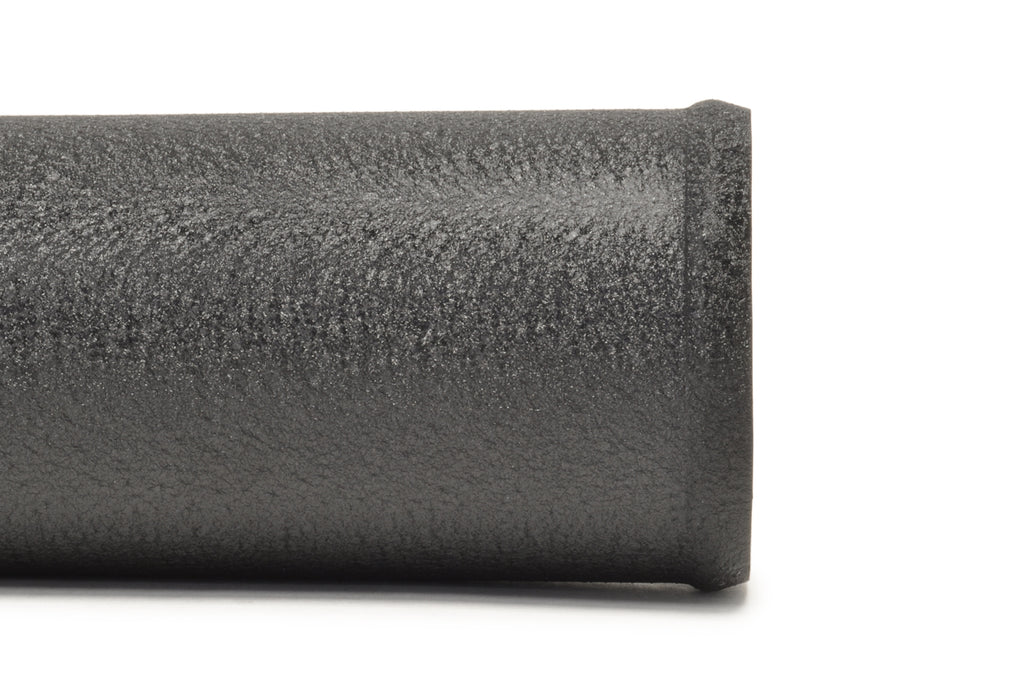

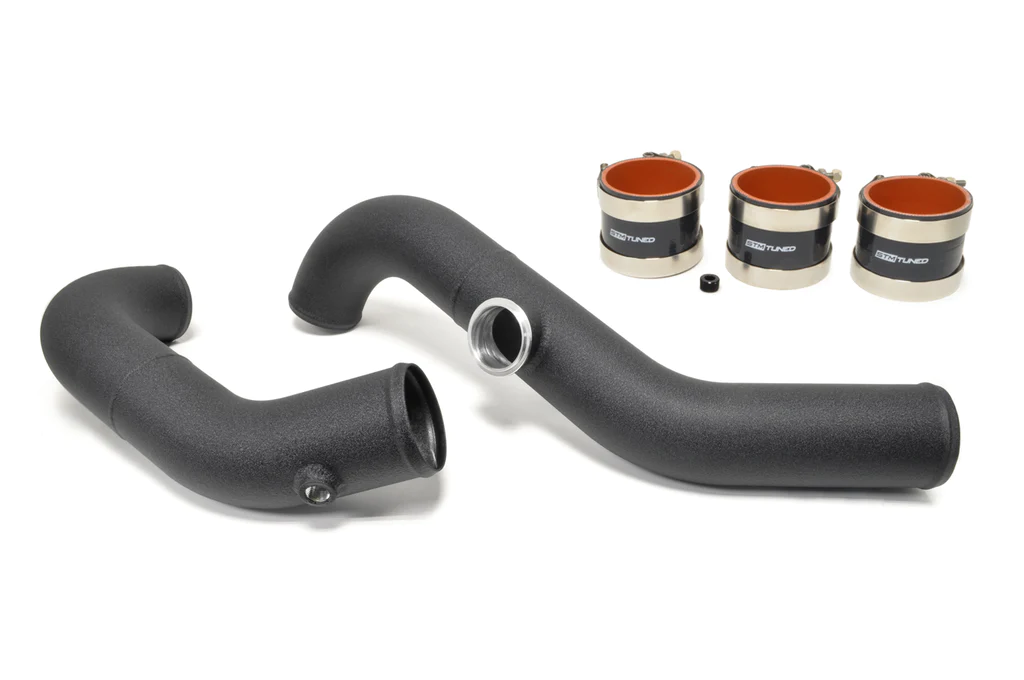

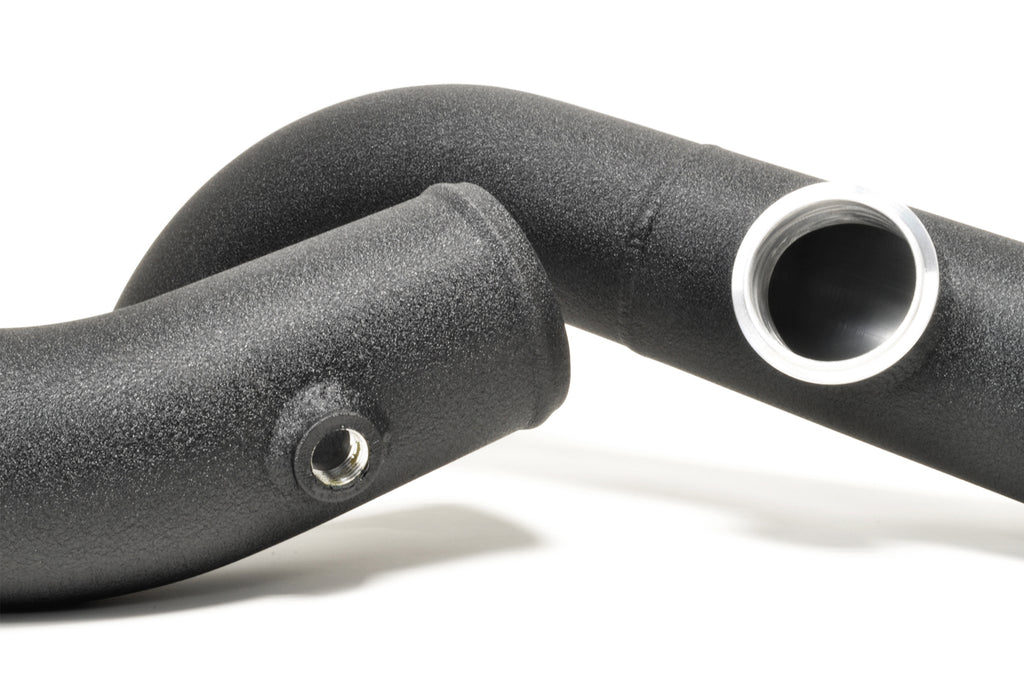

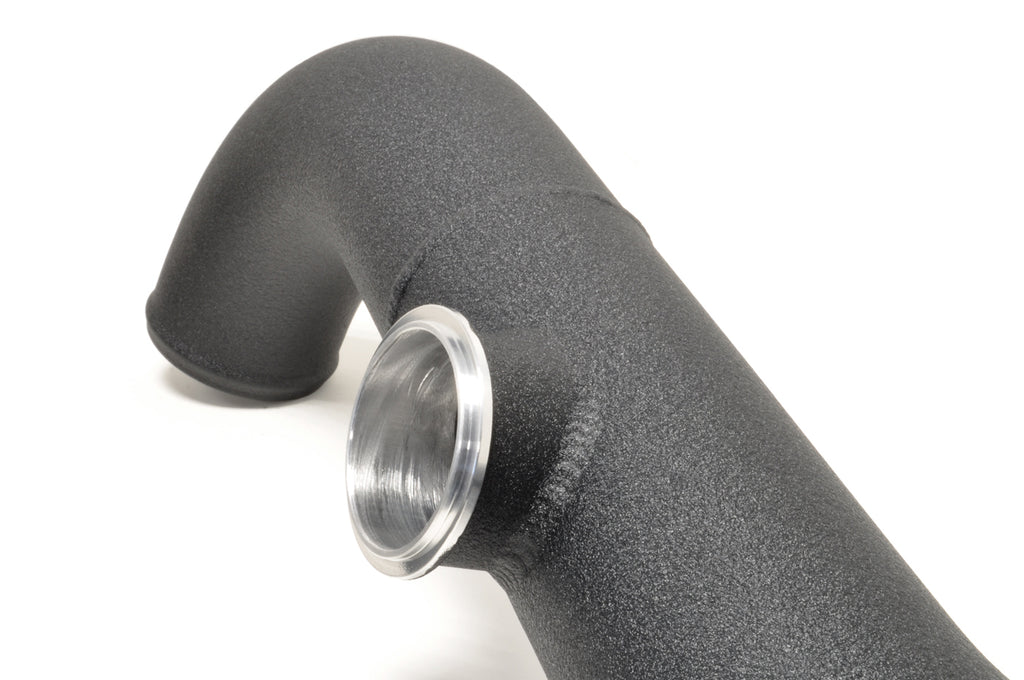

• Wrinkle Black Powdercoat Finish

Shipping Times: 1-14 Days
Hand crafted in New York, please give our fabricators time to create and finish your pipes!

Additional information

Select Finish:

Brushed, Polished, Gloss Black, Wrinkle Black

BOV Flange:

TiAL BOV Flange, HKS BOV Flange, GReddy BOV Flange

Select Couplers:

3.00" to TB / 3.00" to IC, 3.00" to TB / 2.50" to IC, 2.75" to TB / 3.00" to IC, 2.75" to TB / 2.50" to IC
