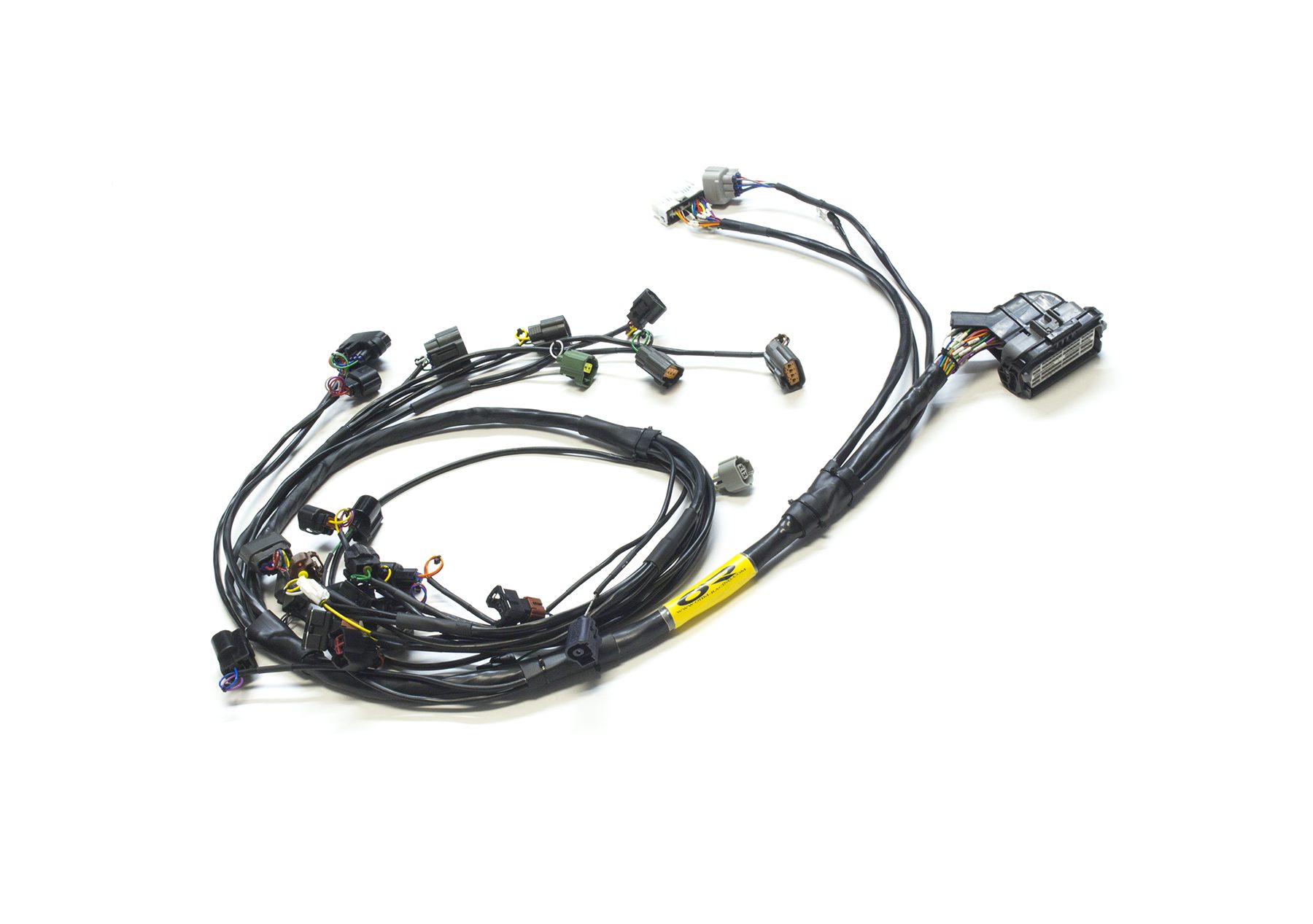

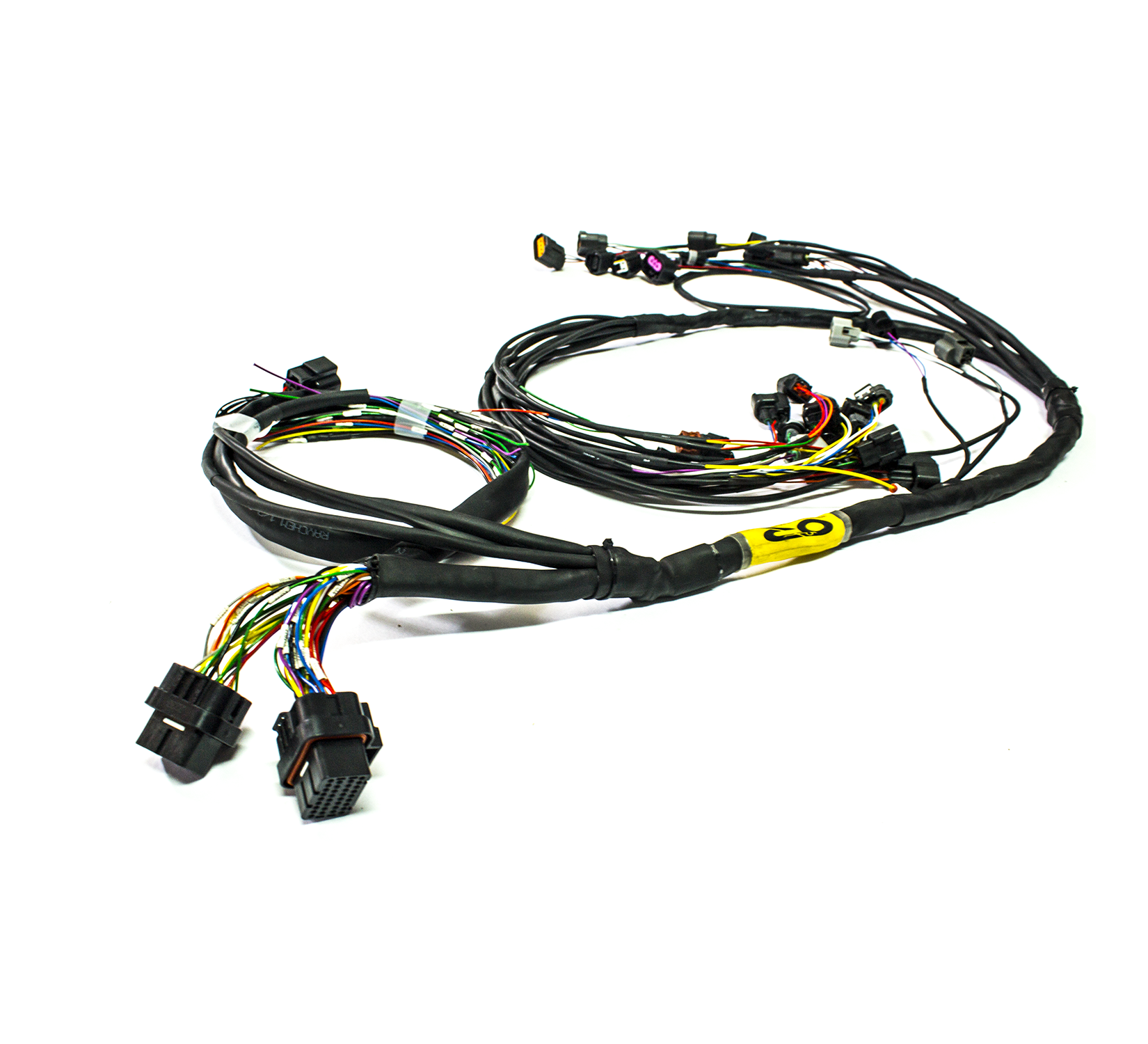

EVO X “Tucked” Mil-Spec harness (MT) ”ECU Master/Motec”



Brand new Plug and play Mil-spec harness for Evo X. This is a plug and play harnesses designed in a way that is “tucked” in your engine bay.




Now offering plug and play to both stock ECU or MOTEC, If you have a Motec ECU you will need this firmware to control things like your ACD/AYC.

The Mil-Spec OHM Racing Plug & Play  Wire Harness offers Mil-Spec Tefzel wire ranging from 16AWG to 22AWG and brand new pins seals and connectors. The Tefzel coated wire is loomed with Raychem DR-25 heat shrink protection, Raychem boot, and Raychem ES-4 adhesive lined junctions. Each brand new connector is crimped with pneumatic heads to ensure an OEM crimp, and labeled with a identification label. All heavy interference circuits are protected and grounded properly and no soldering is used at all on this harness (soldering can crack on vibration) only KET open barrel splicing everywhere its needed covered with adhesive heat-shrink as well, we even took the time to label every single wire for you.

The harness is 100% quality tested pin to pin, and Hi-pot tested before shipment.

Connector list:

  • Front MIVEC
  • Rear MIVEC
  • PS Switch
  • Crank
  • INJ 1
  • INJ 2
  • INJ 3
  • INJ 4
  • Starter Switch
  • Oil pressure switch
  • Knock
  • A/C switch
  • Alternator
  • MAT
  • MAP
  • Noise Condensor (Remove if required)
  • EVAP (Remove if required)
  • Electronic TPS
  • Coil 1
  • Coil 2
  • Coil 3
  • Coil 4
  • ECT
  • R CAM
  • F CAM
  • Reverse switch
  • Neutral switch
  • 8 pin Junction connector (specify early or late model)
  • 22 Pin junction connector on fuse box (core required)
  • Ecu connector (core required)
  • Ecu adapter connector (only when selecting Motec ECU)

If you need any extra aftermarket connectors let us know and we can add them for you for a small fee.


Estimated time 8 weeks for this custom order

****Please add and extra 2-3 weeks of leadtime Tax/Pre race season, we get an unbelievable amount of orders during this time, and we can only Manufacture this so fast without sacrificing quality, for more accurate lead-times please contact us before ordering****
